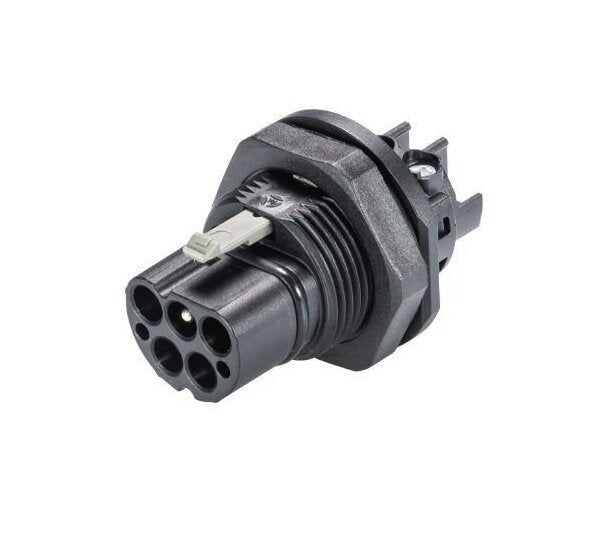

Wieland RST20I4 Black Male Device Connector
Wieland RST20I4 Black Male Device Connector
SKU:CIR-57fa18
Secure outdoor electrical connection with Wieland RST20I4 Male Device Connector in black color & screw connection.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Wieland RST20I4 Black Male Device Connector
$35.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Black Male Device Connector
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Male Device Connector in sleek black color with a straight angle plug is designed for outdoor use. With a screw connection and 4 poles, this connector ensures a secure and reliable electrical connection. It meets international standards with a maximum rated voltage of 600 V and a rated current of 20 A, making it ideal for demanding applications. The IP69 and Type 4X/6P protection ratings guarantee durability and performance in harsh environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I4 Male
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
