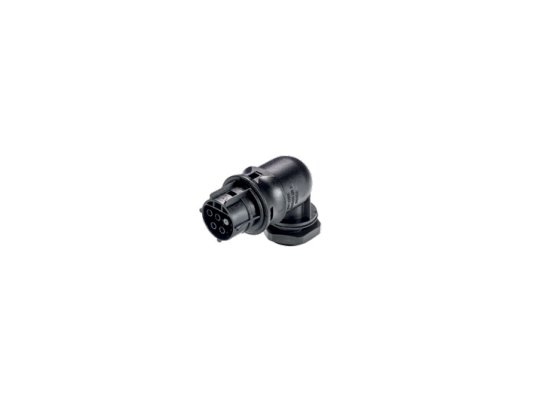

Wieland RST20I4 Female Device Connector, Signal Brown, 90° Angle Plug
Wieland RST20I4 Female Device Connector, Signal Brown, 90° Angle Plug
SKU:CIR-df51bd
Reliable Wieland RST20I4 Female Device Connector with 90° Angled Plug for outdoor use. Rated 20A, IP69 protection. Screw connection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I4 Female Device Connector, Signal Brown, 90° Angle Plug
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Female Device Connector, Signal Brown, 90° Angle Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Female Device Connector in signal brown color features a 90-degree angled plug for easy connectivity. With a screw connection and 4 poles, this circular electrical connector has a rated current of 20A and IP69 protection according to IEC standards. It supports wire sizes ranging from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus), making it suitable for outdoor applications requiring a reliable and durable electrical connection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Model
RST20I4 Female
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
