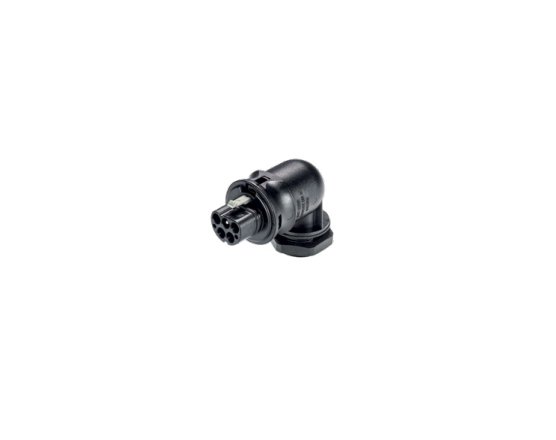

Wieland RST20I4 Male Device Connector, 90 Degree Angle Plug, Black Color
Wieland RST20I4 Male Device Connector, 90 Degree Angle Plug, Black Color
SKU:CIR-8c233b
Reliable Wieland RST20I4 Male Device Connector, perfect for outdoor use, with 90° angle plug & 4 poles.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I4 Male Device Connector, 90 Degree Angle Plug, Black Color
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Male Device Connector, 90 Degree Angle Plug, Black Color
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Male Device Connector with a 90-degree angled plug in sleek black color is designed for robust outdoor applications. Featuring 4 poles, screw connection, and rated for voltages up to 600V, this connector ensures reliable power connectivity. With IP69 and Type 4X/6P protection ratings, it guarantees durability in harsh environments. Compliant with IEC and cULus wire size standards, this connector is versatile and meets rigorous industry requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I4 Male
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
