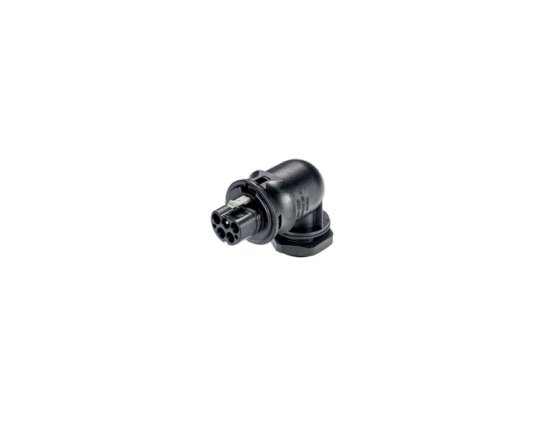

Wieland RST20I4 Male Device Connector, Light Gray, 90 Degree Angle Plug
Wieland RST20I4 Male Device Connector, Light Gray, 90 Degree Angle Plug
SKU:CIR-72b53f
Wieland RST20I4 Male Device Connector, 90° Angle Plug, IP69 Rated, Outdoor Use
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I4 Male Device Connector, Light Gray, 90 Degree Angle Plug
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Male Device Connector, Light Gray, 90 Degree Angle Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Male Device Connector in Light Gray features a 90-degree angled plug for easy installation. With 4 poles and a screw connection type, this connector is designed for outdoor use with a high degree of protection (IP69). It meets international voltage and current ratings, offering reliability and durability for electrical connections in outdoor environments. The wire sizes comply with both IEC and cULus standards, making it a versatile and safe choice for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Screw Connection
General Model
RST20I4 Male
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
