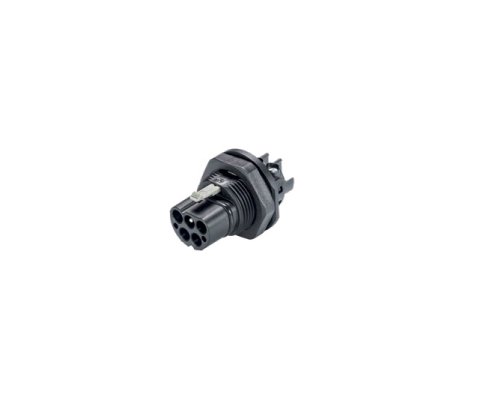

Wieland RST20I4 Male Device Connector, Light Gray, Straight Angle Plug
Wieland RST20I4 Male Device Connector, Light Gray, Straight Angle Plug
SKU:CIR-ff9b27
Wieland RST20I4 Male Device Connector - Reliable screw connection, IP69 protection, ideal for outdoor use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I4 Male Device Connector, Light Gray, Straight Angle Plug
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Male Device Connector, Light Gray, Straight Angle Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Male Device Connector in light gray offers a reliable screw connection with a straight angle plug design. Suitable for outdoor use, this connector is rated for a minimum voltage of 250V and a current of 20A. With IP69 and Type 4X / 6P protection, it ensures durability in harsh environments. Compliant with IEC and cULus wire size standards, this connector supports wires ranging from 0.75 to 4 mm² (18 to 14 AWG), making it a versatile and secure choice for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Screw Connection
General Model
RST20I4 Male
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
