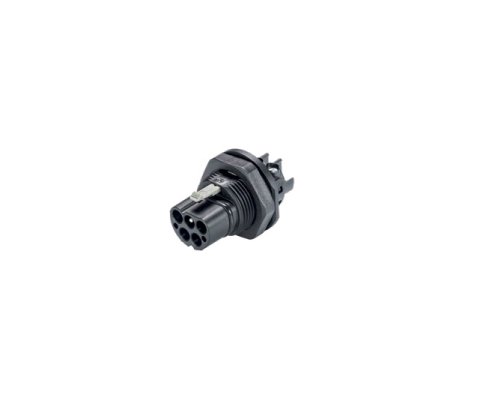

Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector
Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector
SKU:CIR-3fd5e4
High-quality Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector for outdoor electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Male Signal Brown Straight Angle Plug Connector is a high-quality circular electrical connector designed for outdoor use. Featuring a robust screw connection and M25 thread size, this connector ensures secure and reliable electrical connections. With a rated voltage ranging from 250V to 600V and a rated current of 20A, it meets the demanding requirements of industrial applications. Additionally, its IP69 and cULus Type 4X/6P ratings provide excellent protection against water and dust, making it ideal for outdoor installations. Suitable for wire sizes from 0.75mm² to 4mm² or 18 to 14 AWG, this connector is versatile and durable, offering reliability in challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Model
RST20I4 Male
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
