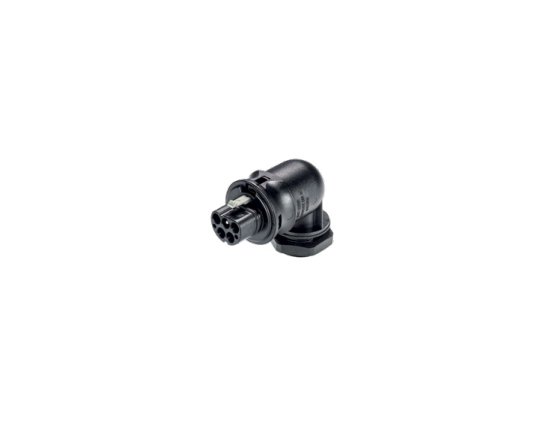

Wieland RST20I5 90° Angled Male Connector, Black
Wieland RST20I5 90° Angled Male Connector, Black
SKU:CIR-7010aa
RST20I5 Male Connector: 90° angled, black color, IP69 protection, for secure outdoor electrical connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I5 90° Angled Male Connector, Black
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 90° Angled Male Connector, Black
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5 Male Device Connector is a high-quality circular electrical connector designed for outdoor use. This 5-pole connector features an angled 90° plug, ensuring secure connections in tight spaces. With a robust construction and a black color coding/contact carrier, this connector provides reliable performance in various applications. It meets international standards for voltage, current, and wire sizes, offering a rated voltage range of 250V to 600V and a rated current of 20A. The IP69 and Type 4X/6P protection levels make it suitable for demanding environments, ensuring durability and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I5 Male
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
