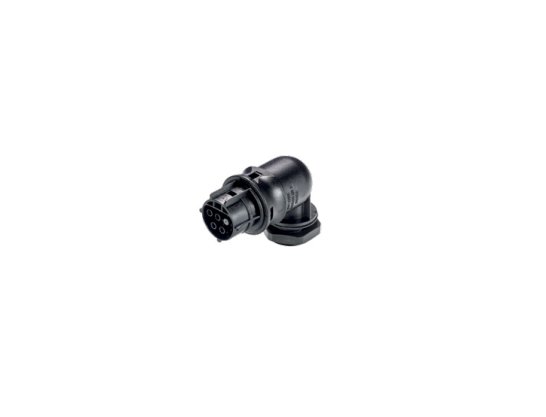

Wieland RST20I5 Female Device Connector, 90 Degree Angle Plug, Black Color
Wieland RST20I5 Female Device Connector, 90 Degree Angle Plug, Black Color
SKU:CIR-2ef42c
Wieland RST20I5 Female Device Connector with 90° Angle Plug in Black, Outdoor Rating, 5 Poles, Screw Connection - IP69, cULus Type 4X / 6P, 600V, 20A
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I5 Female Device Connector, 90 Degree Angle Plug, Black Color
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 Female Device Connector, 90 Degree Angle Plug, Black Color
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5 Female Device Connector features a 90-degree angled plug design in a sleek black color, ideal for outdoor applications. With 5 poles and a screw connection type, it offers a secure and reliable electrical connection. This connector is rated for voltages up to 600V and currents up to 20A, meeting international standards (IP69) and North American standards (cULus Type 4X / 6P). Suitable for wire sizes ranging from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus), this connector ensures performance and durability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I5 Female
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
