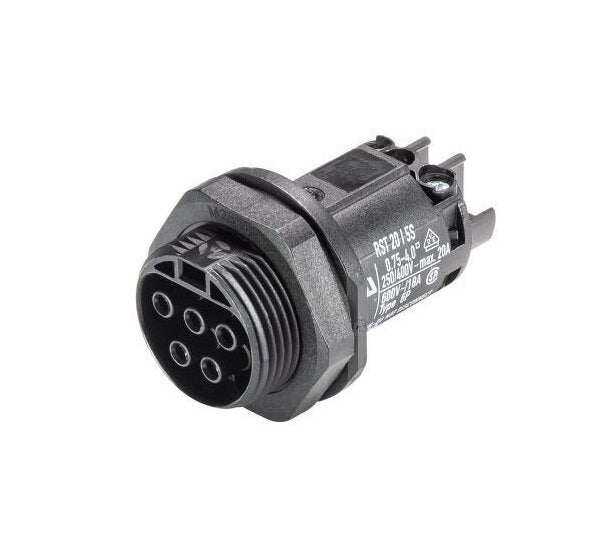

Wieland RST20I5 Female Device Connector, Black, Straight Angle Plug
Wieland RST20I5 Female Device Connector, Black, Straight Angle Plug
SKU:CIR-215624
Experience secure outdoor electrical connections with the Wieland RST20I5 Female Device Connector in Black. Rated for 250-600V, 20A, IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I5 Female Device Connector, Black, Straight Angle Plug
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 Female Device Connector, Black, Straight Angle Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5 Female Device Connector in Black features a straight angle plug design ideal for outdoor applications. With 5 poles and a screw connection type, this connector is rated for 250V to 600V and 20A, meeting international standards for IP69 and Type 4X/6P protection. Suitable for wire sizes ranging from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus), it ensures reliable and secure electrical connections in diverse settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I5 Female
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
