Wieland RST20I5 Female Device Connector, Signal Brown Color
Wieland RST20I5 Female Device Connector, Signal Brown Color
SKU:CIR-4fa920
Secure outdoor electrical connections with Wieland RST20I5 Female Connector in Signal Brown. 5 poles, 20 A, IP69 rated. Reliable screw connection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I5 Female Device Connector, Signal Brown Color
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 Female Device Connector, Signal Brown Color
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

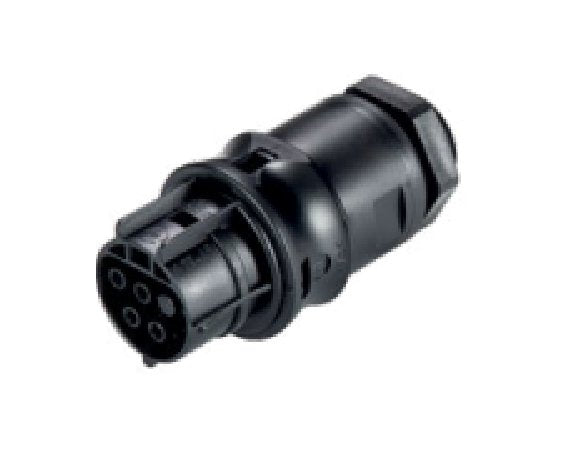

The Wieland RST20I5 Female Device Connector in Signal Brown color is a reliable solution for outdoor electrical connections. With a straight angle plug design and 5 poles, this connector offers a secure screw connection for enhanced durability. It meets international standards with a rated current of 20 A, rated voltage up to 600 V, and IP69 ingress protection. The connector supports wire sizes ranging from 0.75 to 4 mm², ensuring compatibility with various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Model
RST20I5 Female
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
