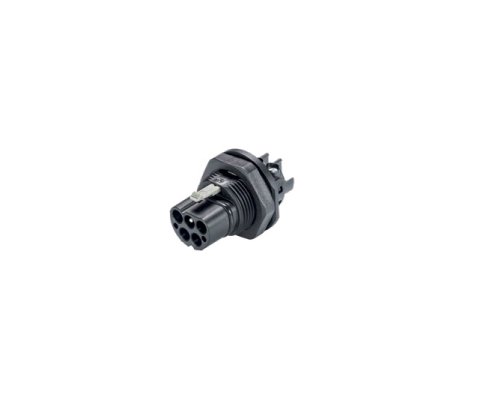

Wieland RST20I5 Male Device Connector, Black, 5 Poles, Straight Angle Plug
Wieland RST20I5 Male Device Connector, Black, 5 Poles, Straight Angle Plug
SKU:CIR-e33873
High-performance Wieland RST20I5 Male Connector for outdoor use, 5 poles, IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I5 Male Device Connector, Black, 5 Poles, Straight Angle Plug
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 Male Device Connector, Black, 5 Poles, Straight Angle Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5 Male Device Connector in black features a screw connection with 5 poles. This outdoor-rated circular electrical connector is designed for durability, with a thread size of M25 and a high degree of protection (IP69, Type 4X / 6P). It meets international standards for rated voltage, current, and wire size, ensuring reliable performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I5 Male
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
