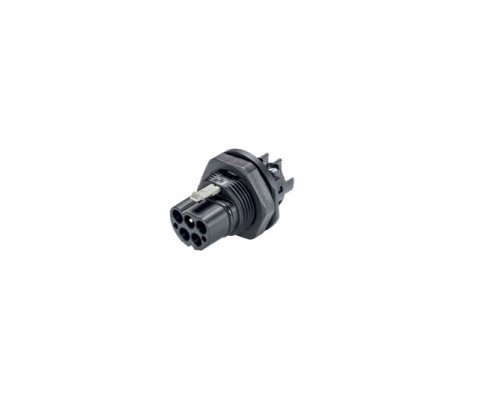

Wieland RST20I5 Turquoise Blue 5-Pole Male Device Connector
Wieland RST20I5 Turquoise Blue 5-Pole Male Device Connector
SKU:CIR-361378
Reliable Wieland RST20I5 Turquoise Blue Male Device Connector for outdoor use, 5 poles, 250-600V, 20A, IP69 & Type 4X/6P rated.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I5 Turquoise Blue 5-Pole Male Device Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5 Turquoise Blue 5-Pole Male Device Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5 Turquoise Blue Male Device Connector is a durable solution designed for outdoor applications. Featuring a straight angle plug for easy installation, this connector offers reliable screw connections ensuring secure electrical connections. With a rated voltage range of 250V to 600V and a rated current of 20A, this connector is suitable for various electrical needs. Meeting IP69 and Type 4X/6P protection standards, it ensures optimal performance in challenging environments. Compatible with wire sizes ranging from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus), this connector provides versatility and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Turquoise Blue
General Connection Type
Screw Connection
General Model
RST20I5 Male
General Number Of Poles
5
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
