Wieland RST20I5S B1 Circular Electrical Connector
Wieland RST20I5S B1 Circular Electrical Connector
SKU:CIR-5cd663
Experience reliable 20A connectivity with the Wieland RST20I5S B1 Connector.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I5S B1 Circular Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5S B1 Circular Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

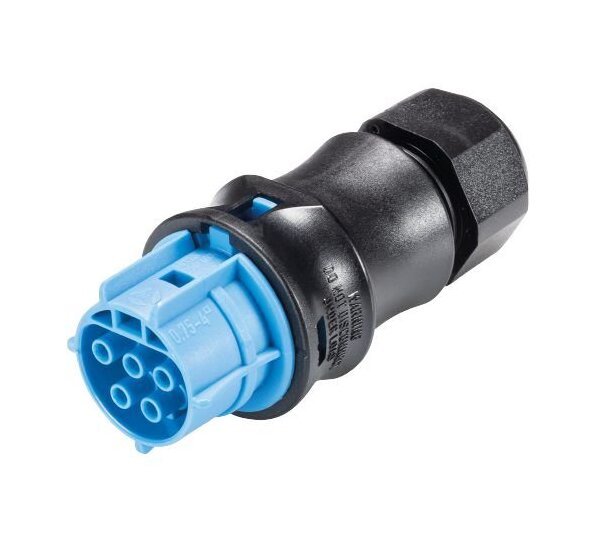

Upgrade your outdoor electrical connections with the Wieland RST20I5S B1 Circular Electrical Connector. This 5-pole female connector features a screw connection, suitable for 250/400V applications at 20A. With a coding color of light blue and a housing in black, this connector offers a IP66 | IP68 | IP69 protection rating, ensuring durability and safety in various environments. Compliant with RoHS and REACH-SVHC regulations, this connector is a reliable choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Light Blue
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | 4 | 5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.289 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
