Wieland RST20I5S B1 ZR1 SW Outdoor Electrical Connector
Wieland RST20I5S B1 ZR1 SW Outdoor Electrical Connector
SKU:CIR-9c841c
Reliable Wieland 5-pole electrical connector for outdoor applications, IP66/IP68/IP69 rated, self-locking with black housing. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I5S B1 ZR1 SW Outdoor Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5S B1 ZR1 SW Outdoor Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

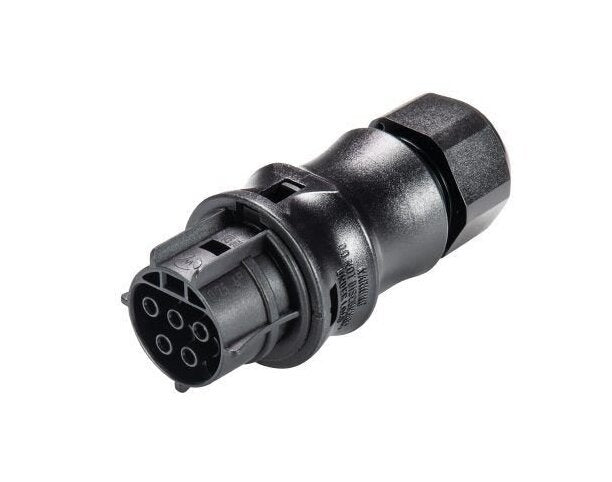

The Wieland RST20I5S B1 ZR1 SW Electrical Connector is a high-quality pluggable 5 pole female connector with a screw connection, suitable for applications with 250/400V with PE. It has a rated current of 20A, designed for cable diameters ranging from 6-10mm. With IP66, IP68, and IP69 protection ratings, this connector ensures reliable performance in outdoor environments. The connector is self-locking and features black housing with strain relief for added durability. Compliant with RoHS standards, this connector is the ideal choice for secure and efficient electrical connections in demanding outdoor settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
4 mm²
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.289 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
