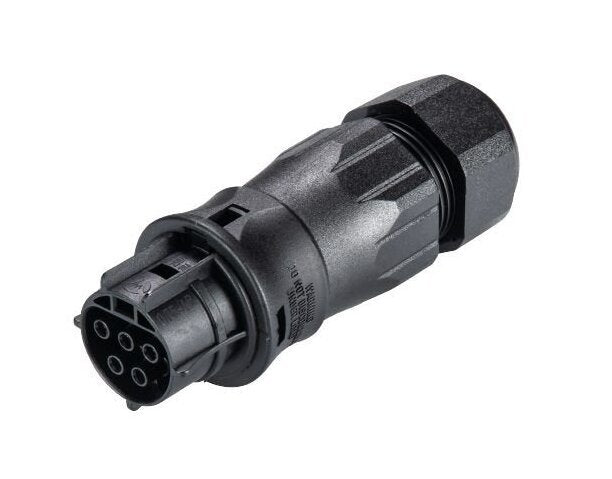

Wieland RST20I5S B1 ZR3 SW 5-Pole Electrical Connector
Wieland RST20I5S B1 ZR3 SW 5-Pole Electrical Connector
SKU:CIR-a9a577
High-quality 5-pole female electrical connector with IP69 protection, ideal for outdoor applications. RoHS compliant for reliable performance.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Wieland RST20I5S B1 ZR3 SW 5-Pole Electrical Connector
$28.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5S B1 ZR3 SW 5-Pole Electrical Connector
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I5S B1 ZR3 SW Electrical Connector is a high-quality 5-pole female plug with a straight screw connection, suitable for applications up to 400V. With a robust housing and black color coding, this connector is designed for outdoor use and features IP69 protection against dust and water ingress. It can accommodate cable diameters ranging from 13-18mm and is rated for 20A current. Compliant with RoHS standards, this connector ensures reliable and secure electrical connections in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
18 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
4 mm²
Connection Data Minimum Cable Diameter
13 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
37 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
35.4 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.362 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
