Wieland RST20I5S Circular Connector 20A
Wieland RST20I5S Circular Connector 20A
SKU:CIR-5eff4a
Reliable Wieland RST20I5S Circular Connector with 20A capacity, IP66/68 protection, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I5S Circular Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I5S Circular Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

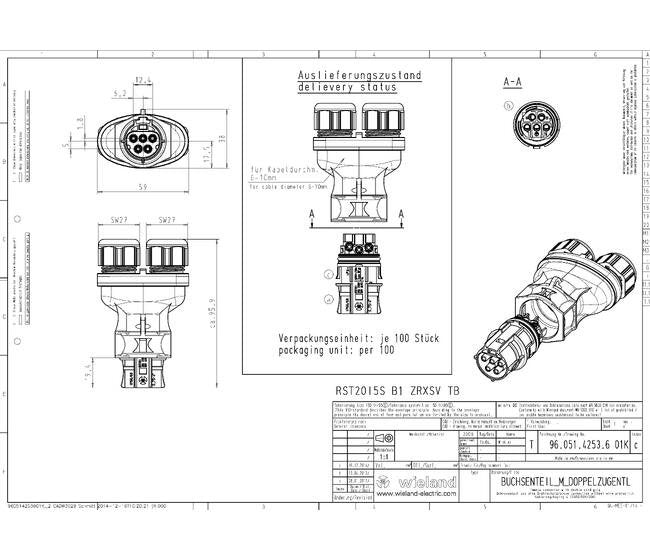

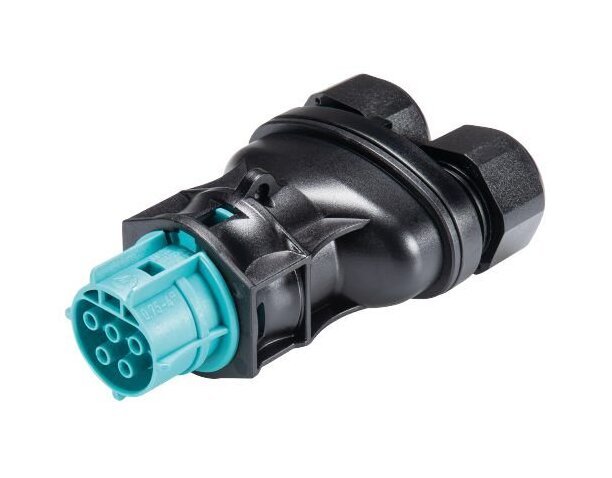

The Wieland RST20I5S B1 ZRXS TB0 Circular Connector is a high-quality 5-pole female splitter connector designed for reliable electrical connections in outdoor settings. With a maximum rated voltage of 600V and a rated current of 20A, this connector is suitable for applications requiring robust performance. The self-locking feature with unlocking by tool ensures secure connections, while the turquoise blue coding color and black housing provide both functionality and aesthetic appeal. This connector meets RoHS compliance standards, making it a sustainable choice for environmentally conscious buyers.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
1.5 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
1.5 mm² | 14 AWG
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
40.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
38 mm
General Color Of Codingcontact Carrier
Turquoise Blue
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
D1 | D2 | L | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.517 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Female
Note Note
RST® terminals with screw clamping allow the connection of conductors without special preparation (without ferrules) according to EN 60999-1.
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Technical Data Maximum Rated Voltage
600 V
