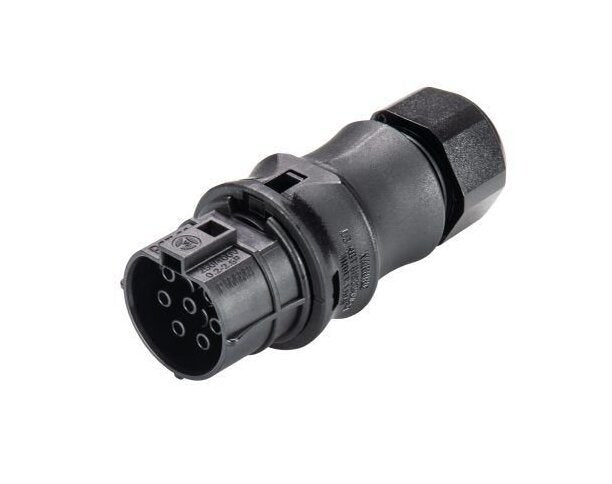

The Wieland RST20I7S B1 ZR2 SW Electrical Connector is a high-quality 7-pole female connector designed for outdoor use. With a rated current of 20A and a voltage range from 250V to 400V, this connector offers reliable performance. It features black housing, IP66/IP68/IP69 protection, self-locking mechanism, and a strain relief for durability. The connector is RoHS compliant and made of halogen-free polyamide, ensuring safety and environmental responsibility. Ideal for cable diameters between 10-14mm, this connector meets rigorous standards for institutional and industrial applications.

Product Specifications

Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
14 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm² | 14 AWG
Connection Data Maximum Solid Connection Cross Section
1.5 mm²
Connection Data Minimum Cable Diameter
10 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.2 mm² | 20 AWG
Connection Data Minimum Solid Connection Cross Section
0.2 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | 4/N | 5 | 6 | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.322 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Material Underwriters Laboratories Ul Classification Housing
UL-V2
Material Underwriters Laboratories Ul Classification Strain Reli
UL-V2
Model Angle Of Plug
Straight
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Type
Female
Note Note
3 poles max. 20A, 4 poles max. 5AOptional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
