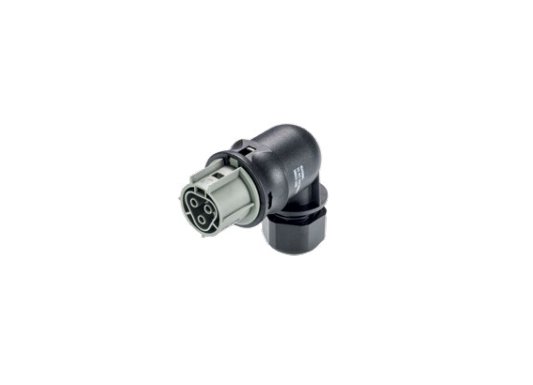

Wieland RST25I3 6-10mm Cable Diameter Female Connector
Wieland RST25I3 6-10mm Cable Diameter Female Connector
SKU:CIR-81d469
High-performance Wieland RST25I3 Female Connector for 6-10mm cables, 25A rating, IP69 protection - ideal for outdoor use.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland RST25I3 6-10mm Cable Diameter Female Connector
$34.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3 6-10mm Cable Diameter Female Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST25I3 Female Connector features a pluggable design suitable for outdoor use with a cable diameter range of 6 to 10mm. Rated at 25A with IP69 protection, it ensures reliable screw connections and compliance with international standards like IEC wire sizing and voltage ratings. This concrete gray connector is ideal for demanding electrical applications, offering durability and secure connections.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Number Of Poles
3
General Type
Female
Model Connection Type
Screw Connection
Note Note
Technical details are subject to change
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
