Wieland RST25I3 Female Device Connector
Wieland RST25I3 Female Device Connector
SKU:CIR-a11ec6
High-quality Wieland RST25I3 Female Device Connector with M25 thread size, rated 25A, IP69 protection, ideal for outdoor use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST25I3 Female Device Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3 Female Device Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

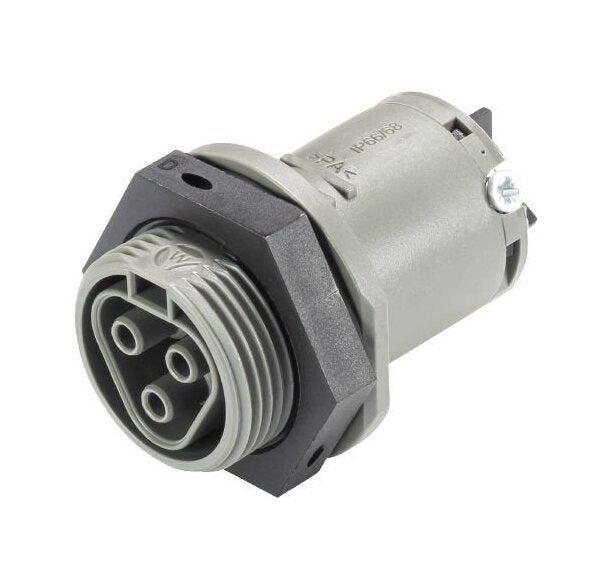

The Wieland RST25I3 Female Device Connector is a high-quality circular electrical connector featuring a straight angle of plug design and a sturdy screw connection. With a thread size of M25, this connector offers a reliable connection for outdoor use, meeting IP69 and Type 4X/6P protection standards. It supports a rated current of 25A and is compatible with wire sizes ranging from 0.75 to 6 mm² according to IEC standards. The concrete gray color of the coding/contact carrier enhances visibility and ensures easy identification.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Connection Type
Screw Connection
General Model
RST25I3 Female
General Number Of Poles
3
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
