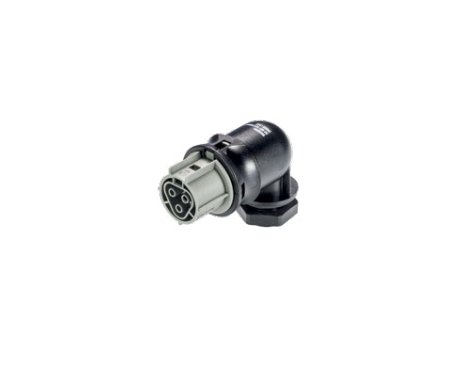

Wieland RST25I3 Female Device Connector - M20 Thread, 90 Degree Angle Plug
Wieland RST25I3 Female Device Connector - M20 Thread, 90 Degree Angle Plug
SKU:CIR-11a068
Reliable Wieland RST25I3 Female Device Connector for secure outdoor electrical connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST25I3 Female Device Connector - M20 Thread, 90 Degree Angle Plug
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3 Female Device Connector - M20 Thread, 90 Degree Angle Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST25I3 Female Device Connector is a premium outdoor-rated circular electrical connector designed for rigorous outdoor applications. With a threaded M20 size and a 90-degree angled plug, this connector ensures secure and reliable connections. It features a screw connection type, a concrete gray color for easy identification, and a high degree of protection with an IP69 and Type 4X/6P rating. Suitable for voltages ranging from 250V to 600V and currents up to 25A, this connector accommodates wire sizes from 0.75mm² to 6mm² (IEC) and 12 AWG solid (cULus). Trust in Wieland's quality and durability for your electrical connections.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Connection Type
Screw Connection
General Model
RST25I3 Female
General Number Of Poles
3
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
