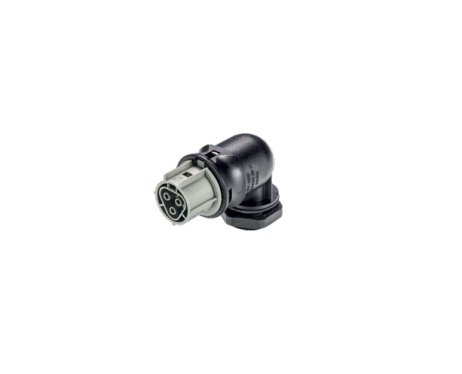

Wieland RST25I3 Female Device Connector, M25 Thread Size, 90 Degree Angle Plug
Wieland RST25I3 Female Device Connector, M25 Thread Size, 90 Degree Angle Plug
SKU:CIR-e0b782
Wieland RST25I3 Female Device Connector - Outdoor Circular Electrical Connector with M25 Thread Size, 90° Angle Plug, IP69 & Type 4X/6P Protection
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST25I3 Female Device Connector, M25 Thread Size, 90 Degree Angle Plug
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3 Female Device Connector, M25 Thread Size, 90 Degree Angle Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST25I3 Female Device Connector is a high-performance circular electrical connector designed for outdoor use. Featuring a 90-degree angled plug with a durable screw connection, this connector ensures secure and reliable connections. With a thread size of M25 and a rated voltage ranging from 250V to 600V, it can handle currents up to 25A. Meeting IP69 and Type 4X / 6P protection standards, this connector is ideal for demanding environments. Compliant with IEC and cULus wire size requirements, it offers versatility and safety for various electrical applications.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Connection Type
Screw Connection
General Model
RST25I3 Female
General Number Of Poles
3
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
