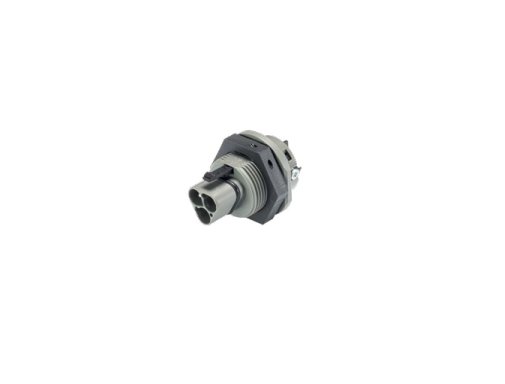

The Wieland RST25I3 Male Device Connector is a high-quality circular electrical connector designed for outdoor use. Featuring a straight angle of plug and a sturdy screw connection, this connector offers reliable performance in demanding environments. With a thread size of M25 and a robust construction, it meets IP69 and Type 4X / 6P standards for protection against water and dust. Suitable for wire sizes ranging from 0.75 to 6 mm² per IEC standards, this connector ensures secure connections rated up to 600V. Trust in the Wieland RST25I3 for durable outdoor electrical connections.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Connection Type
Screw Connection
General Model
RST25I3 Male
General Number Of Poles
3
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
