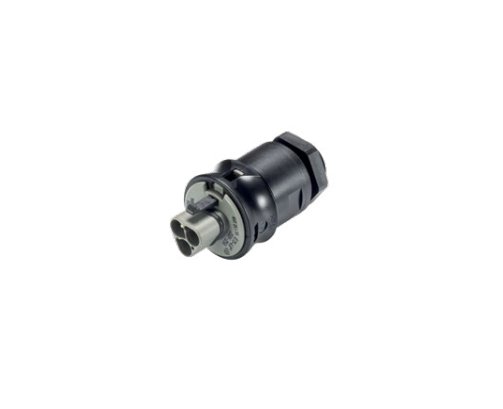

Wieland RST25I3 Male Device Connector - M20 Thread Size
Wieland RST25I3 Male Device Connector - M20 Thread Size
SKU:CIR-8c6850
Reliable Wieland RST25I3 Male Device Connector with screw connection, 25A current, and IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST25I3 Male Device Connector - M20 Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3 Male Device Connector - M20 Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST25I3 Male Device Connector offers a reliable connection with a screw connection type and straight angle plug design. With a rated current of 25A and a durable construction, this connector is suitable for outdoor use with an IP69 and Type 4X / 6P protection rating. Meeting international standards for wire size, voltage, and protection, this connector ensures secure electrical connections in demanding environments.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Connection Type
Screw Connection
General Model
RST25I3 Male
General Number Of Poles
3
Note Note
Technical details are subject to change
Specifications Type
Male
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
