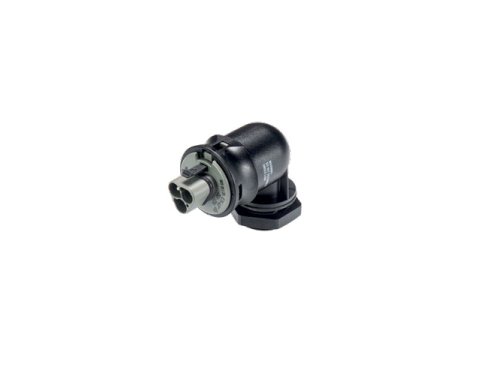

Wieland RST25I3 Male Device Connector - M25 Thread, 90 Degree Angle

Name: Wieland RST25I3 Male Device Connector - M25 Thread, 90 Degree Angle
Brand: Wieland Electric Inc.
SKU: CIR-c1f571
Price: 39.99 USD
Availability: OutOfStock

SKU:CIR-c1f571

Secure outdoor electrical connections with Wieland RST25I3 Male Device Connector - 90º Angle, M25 Thread. Rated up to 600V, 25A.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland RST25I3 Male Device Connector features a secure screw connection, angled at 90 degrees for efficient installation in outdoor settings. With a concrete gray color for clear coding, this connector offers a rated voltage ranging from 250V to 600V and a maximum current of 25A. Meeting IP69 and Type 4X / 6P standards, this connector supports wire sizes from 0.75 to 6 mm² (IEC) and 12 AWG solid wire (cULus), ensuring reliable electrical connections in demanding environments. Stay compliant with international and US standards with this rugged circular electrical connector.

Product Specifications

General Angle Of Plug

Angled 90Âº

General Brands

Wieland

General Color Of Codingcontact Carrier

Concrete Gray

General Connection Type

Screw Connection

General Model

RST25I3 Male

General Number Of Poles

Note Note

Technical details are subject to change

Specifications Type

Male

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

25 A

Technical Data Thread Size

M25

Technical Data Wire Size According To Canadian Ul Listed United

12 AWG Solid

Technical Data Wire Size According To International Electrotechn

0.75 to 6 mmÂ²
