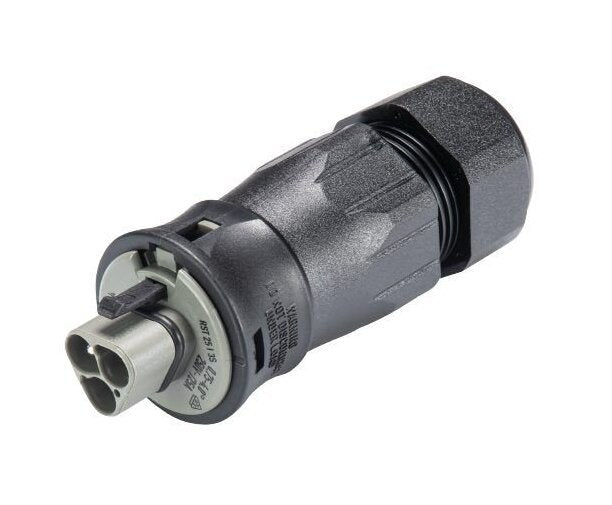

Wieland RST25I3S Circular Electrical Connector
Wieland RST25I3S Circular Electrical Connector
SKU:CIR-10bd85
High-performance Wieland Circular Connector with 3-pole screw connection, IP69 protection, and RoHS compliance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland RST25I3S Circular Electrical Connector
$34.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I3S Circular Electrical Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST25I3S Circular Electrical Connector is a high-performance pluggable connector designed for outdoor use. With a 3-pole screw connection and a rated current of 25A, this connector is ideal for applications requiring a minimum cable diameter of 13mm and a maximum of 18mm. It features a concrete gray color coding for easy identification and a black housing with strain relief. Compliant with IP69 and Type 4X / 6P protection standards, this connector ensures reliable performance in harsh environments. The connector is RoHS and REACH-SVHC compliant, making it a sustainable choice for your electrical connectivity needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
6 mm²
Connection Data Maximum Solid Connection Cross Section
6 mm² | 10 AWG
Connection Data Maximum Stranded Connection Cross Section
10 AWG
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 16 AWG
Connection Data Minimum Stranded Connection Cross Section
16 AWG
Connection Data Sheath Strip Length
37 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
35.4 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Model
RST25I3S S1 ZR3SV BG03
General Number Of Poles
3
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
General Type
Male
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.341 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
