Wieland RST25I5S B1 M01V BG03 Electrical Connector - Female, 25A, M25
Wieland RST25I5S B1 M01V BG03 Electrical Connector - Female, 25A, M25
SKU:CIR-4081f3
High-quality Wieland RST25I5S B1 M01V BG03 Female Electrical Connector for 250/400V applications, 5-pole, 25A, screw connection, IP66/IP68/IP69 rated.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST25I5S B1 M01V BG03 Electrical Connector - Female, 25A, M25
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I5S B1 M01V BG03 Electrical Connector - Female, 25A, M25
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

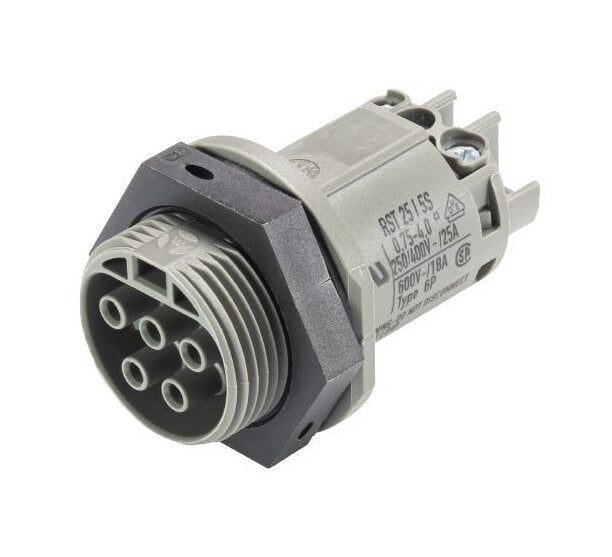

The Wieland RST25I5S B1 M01V BG03 Electrical Connector is a high-quality pluggable device connector designed for 250/400V applications with PE. This 5-pole, female connector features a screw connection, making it secure and reliable for various electrical connections. With a maximum rated voltage of 600V and a rated current of 25A, it ensures efficient power transmission. The connector is color-coded in concrete gray for easy identification and features self-locking capabilities for added safety. Constructed with durable polyamide housing, copper zinc contact material, and silver-plated surface finish, this connector meets industry standards for fire load, insulation, and IP protection, offering a reliable and long-lasting solution for outdoor electrical connections.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
35 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Color Of Separate Adapter If Present
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | L | N | PE
General Model
DEVICE CONNECTOR RST25I5S B1 M01V BG03
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Type
Female
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.129 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connecting Thread Metric
M25
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Thickness Of Housings Electrical Device
8 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Note Note
Fine-stranded and stranded wires have to be used without ferrules; Positioning realized with flattened thread
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Maximum Rated Voltage
600 V
