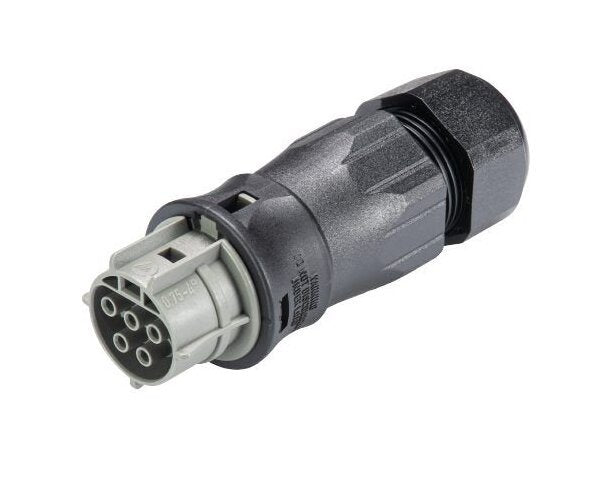

The Wieland RST25I5S B1 ZR3S BG03 Circular Connector is a high-quality 5-pole connector designed for demanding applications. With a rated current of 25A and a maximum voltage of 600V, this connector is ideal for outdoor use with its IP66/IP68/IP69 protection ratings. The self-locking mechanism ensures secure connections, while the strain relief and polyamide housing guarantee durability. Compliant with RoHS standards and featuring copper zinc contacts, this connector is reliable and safe for various industrial and institutional needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
37 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

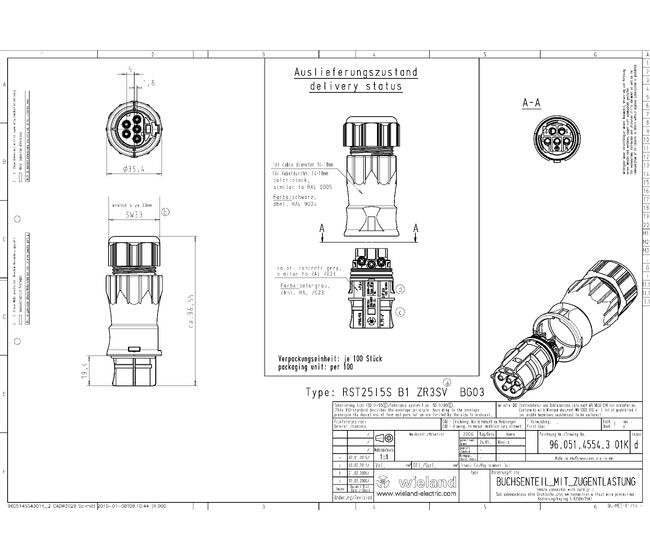

Dimensions Height
35.4 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | L | N | PE
General Model
RST25I5S B1 ZR3S BG03
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.363 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Female
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
13 mm
