Wieland RST25I5S Circular Connector 25A - Outdoor Rated
Wieland RST25I5S Circular Connector 25A - Outdoor Rated
SKU:CIR-5b40e2
Reliable Wieland RST25I5S Circular Connector 25A for demanding outdoor applications. Secure screw connections & robust design.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Wieland RST25I5S Circular Connector 25A - Outdoor Rated
$42.99
Quantity: 1
Claim Your Seller Account
Wieland RST25I5S Circular Connector 25A - Outdoor Rated
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

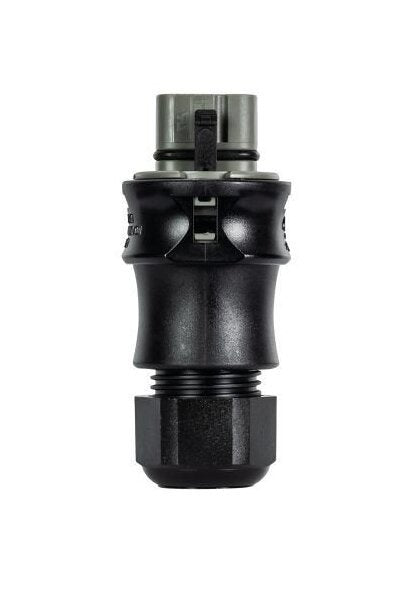

The Wieland RST25I5S S1 ZR2SV BG03 Circular Connector is a high-quality pluggable electrical connector designed for demanding applications. Featuring 5 poles with screw connections, this connector is rated for applications at 250/400V with PE, supporting a maximum current of 25A. Its robust construction and strain relief ensure secure connections for cable diameters ranging from 10-14mm. With a housing color in black and coding color in concrete gray, this connector offers reliable performance in outdoor environments.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | L | N | PE
General Model
RST25I5S S1 ZR2SV BG03
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.285 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Male
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
