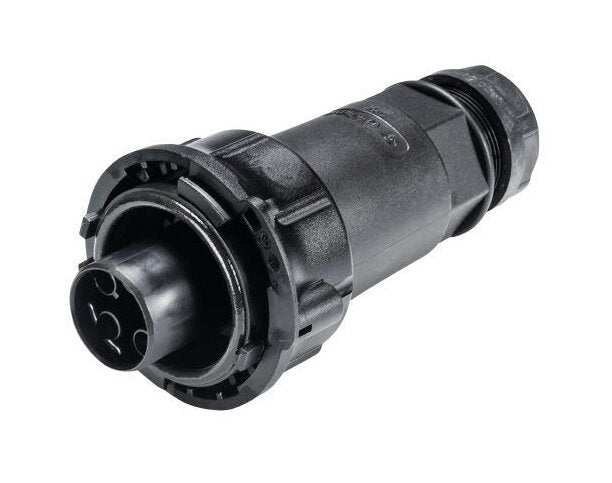

Wieland RST50I4S Circular Outdoor Connector 20A
Wieland RST50I4S Circular Outdoor Connector 20A
SKU:CIR-76c89e
Reliable Wieland RST50I4S 4-pole female circular connector for 20A applications with IP66/67/69 protection. Ideal for outdoor use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland RST50I4S Circular Outdoor Connector 20A
$39.99
Quantity: 1
Claim Your Seller Account
Wieland RST50I4S Circular Outdoor Connector 20A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST50I4S B1 ZR5 S SW Circular Connector is a high-quality 4-pole female connector designed for demanding applications requiring a maximum rated voltage of 600V and a rated current of 50A. With a black coding color and housing, this connector offers excellent strain relief, a self-locking feature, and IP66/67/69 protection. It accommodates cable diameters from 15-25mm and copper zinc contact material ensures reliable conductivity. This connector meets RoHS compliance with exceptions and is ideal for outdoor use in diverse environments.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
25 mm
Connection Data Maximum Fine Stranded Connection Cross Section
16 mm²
Connection Data Maximum Solid Connection Cross Section
6 mm²
Connection Data Maximum Stranded Connection Cross Section
6 mm²
Connection Data Minimum Cable Diameter
15 mm
Connection Data Minimum Fine Stranded Connection Cross Section
4 mm²
Connection Data Minimum Solid Connection Cross Section
4 mm²
Connection Data Minimum Stranded Connection Cross Section
4 mm²
Connection Data Sheath Strip Length
80 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
10 mm
Dimensions Height
65 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.407 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP67 | IP69
Model Electrical Connector Type
Female
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Maximum Rated Voltage
600 V
