Wieland RST50I4S Outdoor Electrical Connector
Wieland RST50I4S Outdoor Electrical Connector
SKU:CIR-52c5f7
High-quality Wieland RST50I4S outdoor electrical connector for secure, reliable outdoor electrical installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland RST50I4S Outdoor Electrical Connector
$39.99
Quantity: 1
Claim Your Seller Account
Wieland RST50I4S Outdoor Electrical Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

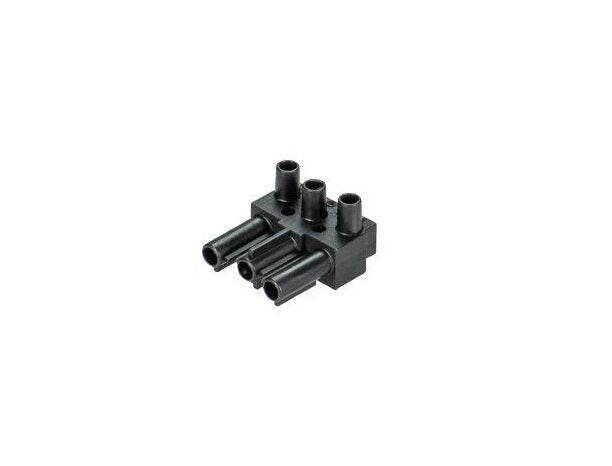

The Wieland RST50I4S B1 ZM02V SW Device Connector is a high-quality, 4-pole female connector designed for outdoor use with a maximum rated voltage of 600V. This screw connection device is rated for 50A and features a secure lockable design. With a black color coding, it offers easy installation for wires ranging from 4mm² to 16mm². The connector is IP66, IP67, and IP69 rated for protection against water and dust, making it ideal for outdoor applications. Compliant with RoHS standards and made of durable polyamide housing with halogen-free materials, this connector ensures safety and reliability in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
16 mm²
Connection Data Maximum Solid Connection Cross Section
16 mm²
Connection Data Maximum Stranded Connection Cross Section
16 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
4 mm²
Connection Data Minimum Solid Connection Cross Section
4 mm²
Connection Data Minimum Stranded Connection Cross Section
4 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
10 mm
Dimensions Height
65 mm
Dimensions Length
65.7 mm
Dimensions Width
65 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Yes
General Marking Of Poles
1 | 2 | 3 | PE
General Maximum Rated Voltage
600 V
General Model
RST50I4S B1 ZM02V SW
General Number Of Poles
4
General Pollution Degree
3
General Rated Current
50 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.424 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connecting Thread Metric
M32
Model Connection Type
Screw Connection
Model Connector Type
Female
Model Degree Of Protection
IP66 | IP67 | IP69
Model Thickness Of Housings Electrical Device
7 mm
Model Thickness Of Housings Electrical Device 2
2 mm
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
