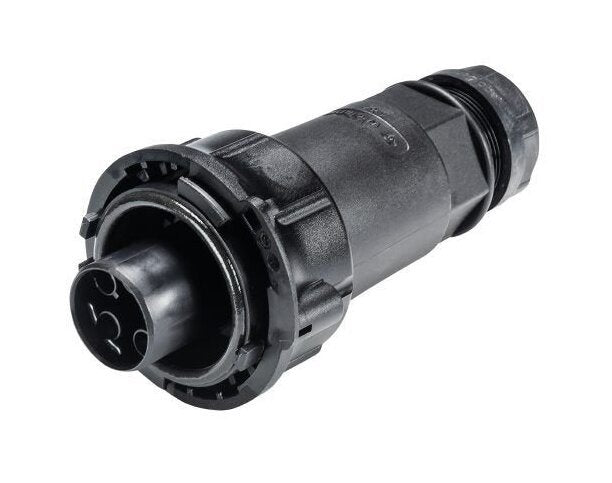

Wieland RST50I5S B1 ZR5 S SW 5-Pole Female Screw Electrical Connector - IP66/67/69, 50A, 600V
Wieland RST50I5S B1 ZR5 S SW 5-Pole Female Screw Electrical Connector - IP66/67/69, 50A, 600V
SKU:CIR-349af1
High-quality 5-pole female screw electrical connector, IP66/67/69 rated for outdoor use. Ideal for 250/400V applications with 50A current. RoHS compliant.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland RST50I5S B1 ZR5 S SW 5-Pole Female Screw Electrical Connector - IP66/67/69, 50A, 600V
$69.99
Quantity: 1
Claim Your Seller Account
Wieland RST50I5S B1 ZR5 S SW 5-Pole Female Screw Electrical Connector - IP66/67/69, 50A, 600V
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST50I5S B1 ZR5 S SW Electrical Connector is a high-quality 5-pole female connector with a screw connection, designed for demanding applications at 250/400V. It features a maximum rated voltage of 600V and a rated current of 50A, suitable for cable diameters ranging from 15mm to 25mm. With a black housing and strain relief, this connector offers IP66/67/69 protection, ensuring reliable performance in outdoor environments. Compliant with RoHS regulations, this connector is crafted with quality materials like polyamide housing and copper zinc contacts for durability and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
25 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
6 mm²
Connection Data Maximum Stranded Connection Cross Section
6 mm²
Connection Data Minimum Cable Diameter
15 mm
Connection Data Minimum Fine Stranded Connection Cross Section
16 mm²
Connection Data Minimum Solid Connection Cross Section
4 mm²
Connection Data Minimum Stranded Connection Cross Section
4 mm²
Connection Data Sheath Strip Length
80 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
10 mm
Dimensions Height
65 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Yes
General Marking Of Poles
1 | 2 | 3 | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.409 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
80 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP67 | IP69
Model Type
Female
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Technical Data Maximum Rated Voltage
600 V
