Wieland RST50I5S Circular Electrical Connector
Wieland RST50I5S Circular Electrical Connector
SKU:CIR-6e403d
High-performance Wieland RST50I5S Circular Electrical Connector for outdoor applications, featuring 600V max voltage, 50A current, and IP66/IP67/IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST50I5S Circular Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST50I5S Circular Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

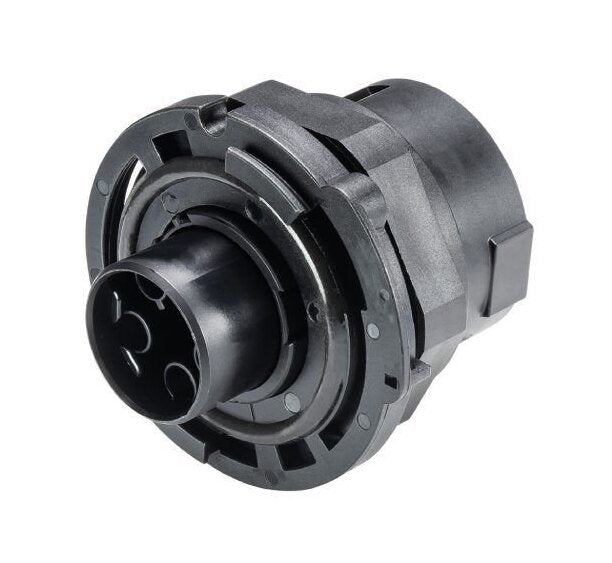

The Wieland RST50I5S is a high-performance 5-pole male circular electrical connector designed for outdoor use. With a maximum rated voltage of 600V and a rated current of 50A, this connector is ideal for applications requiring robust and reliable power connectivity. Featuring a lockable screw connection, IP66/IP67/IP69 protection, and black color coding, this connector ensures secure and durable performance in demanding environments. Compliant with RoHS standards, this connector is constructed with halogen-free polyamide housing and copper zinc contacts, providing optimal insulation and conductivity. The Wieland RST50I5S is the trusted choice for efficient and safe electrical connections in outdoor settings.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
16 mm²
Connection Data Maximum Solid Connection Cross Section
16 mm²
Connection Data Maximum Stranded Connection Cross Section
16 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
4 mm²
Connection Data Minimum Solid Connection Cross Section
4 mm²
Connection Data Minimum Stranded Connection Cross Section
4 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
10 mm
Dimensions Height
65 mm
Dimensions Length
56.7 mm
Dimensions Width
65 mm
General Brands
Wieland
General Color
Black
General Color Of Codingcontact Carrier
Black
General Lockable
Yes
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Model
RST50I5S S1 M02V SW
General Number Of Poles
4
General Pollution Degree
3
General Rated Current
50 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.507 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
80 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connecting Thread Metric
M32
Model Connection Type
Screw Connection
Model Connector Type
Male
Model Degree Of Protection
IP66 | IP67 | IP69
Model Thickness Of Housings Electrical Device
7 mm
Model Thickness Of Housings Electrical Device 2
2 mm
