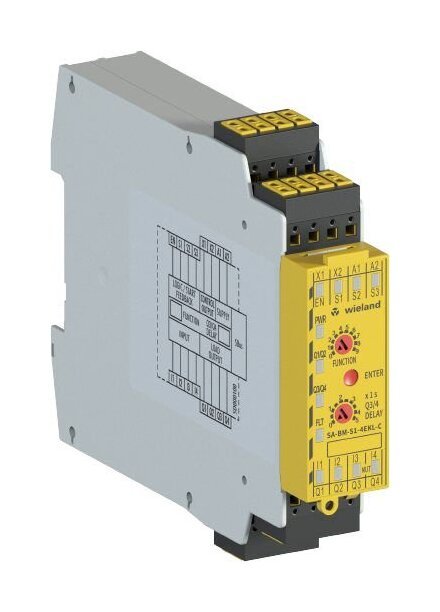

The Wieland SA-BM-S1-4EKL-C 5S DC 24V Samos Basic Module is a versatile safety controller designed for both consumer and institutional needs. With programming by switch, 8 inputs, and 4 semiconductor-outputs, this module offers 8 functions including off-delay up to 5 seconds. It features a SIL 3 rating according to IEC 61508, making it suitable for critical safety applications. The module is parameterizable, extendable, and comes with push-in terminals for easy installation, meeting the highest standards of safety and reliability.
Product Specifications
Application Function 2 Hand Switching
Yes
Application Function Access Control
Yes
Application Function Affirm Pushbutton
Yes
Application Function Contacter Monitoring
Yes
Application Function Contactless Working Protection Installation
Yes
Application Function Emergency Stop
Yes
Application Function Operating Mode Selection
No
Application Function Restart Blockage
Yes
Application Number Of Slots
12
Application Off Delay Timer
Yes
Application On Delay Timer
Yes
Application With Automatic Closing
Yes
Classification Eclass 81 Classification
27243101
Classification Etim 40 Classification
EC002538
Classification Etim 50 Classification
EC002538
Classification Etim 60 Classification
EC002538
Classification Etim 70 Classification
EC002538
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Spring Clamp Connection
Control Circuit Rated Direct Current Dc Voltage Range For Contro
30 V

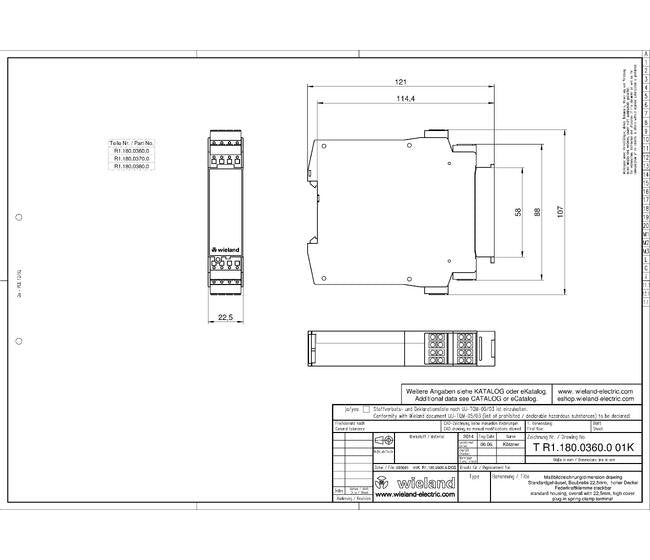

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Extendable
Yes
General Integrated Configuration Function
Yes
General Model
SA-BM-S1-4EKL-C 5S DC 24V
General Parameterizable
Yes
General Programmable
Yes
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Output Circuit Number Of Digital Outputs Integrated
4
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Supply Circuit Maximum Supply Voltage
30 V
Supply Circuit Minimum Supply Voltage
19.2 V
Type Of Input Voltage Rail Mounting Possible
Yes
Type Of Input Voltage Supply Voltage Range
19.2Â to 30 V
Type Of Input Voltage Wall Mountingdirect Mounting
No
