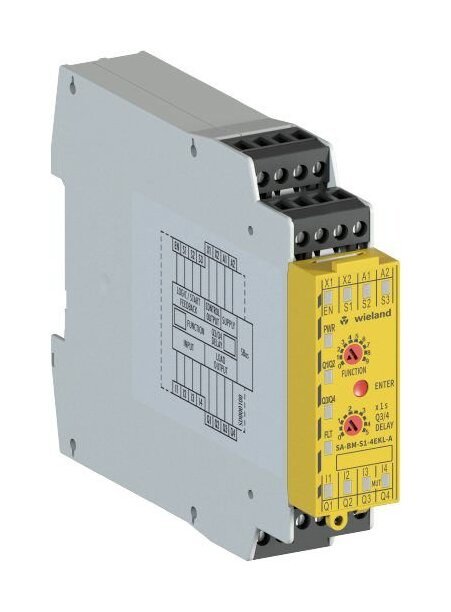

Wieland SA-BM-S1-4EKL Safety Controller 24V DC Module
Wieland SA-BM-S1-4EKL Safety Controller 24V DC Module
SKU:SAF-06f7c6
Wieland SA-BM-S1-4EKL Safety Controller: 8 inputs, 4 outputs, SIL 3 compliant for industrial safety applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wieland SA-BM-S1-4EKL Safety Controller 24V DC Module
$299.99
Quantity: 1
Claim Your Seller Account
Wieland SA-BM-S1-4EKL Safety Controller 24V DC Module
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SA-BM-S1-4EKL-A 5S DC 24V Samos Basic Module is a versatile switch-programmable safety controller designed for industrial applications. It features 8 inputs, 4 semiconductor outputs, and 8 functions including off-delay timing. With screw-terminals that are pluggable, this module offers easy installation and maintenance. It is extendable, programmable, and comes with integrated configuration functions. Meeting SIL 3 standards according to IEC 61508, it ensures reliable safety performance. The SA-BM-S1-4EKL is suitable for diverse safety functions such as emergency stop, access control, and contactor monitoring.
Product Specifications
Application Function 2 Hand Switching
Yes
Application Function Access Control
Yes
Application Function Affirm Pushbutton
Yes
Application Function Contacter Monitoring
Yes
Application Function Contactless Working Protection Installation
Yes
Application Function Emergency Stop
Yes
Application Function Operating Mode Selection
Yes
Application Function Restart Blockage
Yes
Application Number Of Slots
12
Application Off Delay Timer
Yes
Application On Delay Timer
Yes
Application With Automatic Closing
Yes
Classification Eclass 81 Classification
27243101
Classification Etim 40 Classification
EC002538
Classification Etim 50 Classification
EC002538
Classification Etim 60 Classification
EC002538
Classification Etim 70 Classification
EC002538
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Rated Direct Current Dc Voltage Range For Contro
30 V

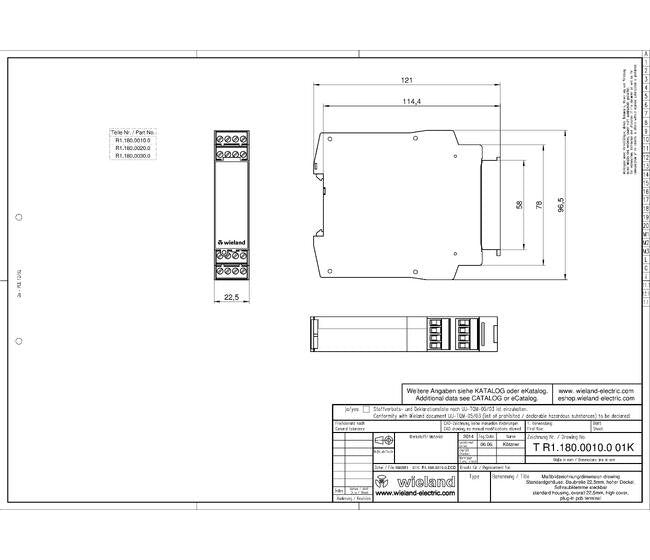

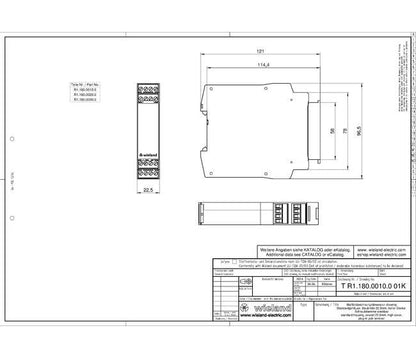

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Extendable
Yes
General Integrated Configuration Function
Yes
General Model
SA-BM-S1-4EKL-A 5S DC 24V
General Parameterizable
Yes
General Programmable
Yes
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Output Circuit Number Of Digital Outputs Integrated
4
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Supply Circuit Maximum Supply Voltage
30 V
Supply Circuit Minimum Supply Voltage
19.2 V
Type Of Input Voltage Rail Mounting Possible
Yes
Type Of Input Voltage Supply Voltage Range
19.2Â to 30 V
Type Of Input Voltage Wall Mountingdirect Mounting
No
