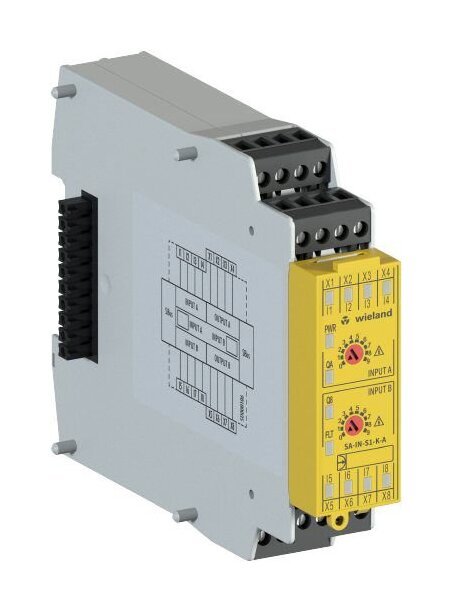

The Wieland SA-IN-S1-K-A DC 24V Samos Input Module is a reliable switch-programmable device designed for safety applications. With 4 x 2 inputs and 2 x 10 input functions, this module offers flexibility and precision in configuring inputs. It features screw-terminals for easy installation and is SIL 3 rated according to IEC 61508, ensuring high safety standards. Suitable for safety functions, this module operates on 24V DC and meets stringent safety parameters like Category 4 (ISO 13849-1) and PL Level e (ISO 13849-1). It complies with RoHS standards and is ideal for industrial applications requiring exceptional safety and performance.
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Input Current At State 1
8 mA
Control Circuit Number Of Inputs
8
Control Circuit Permitted Voltage At Input
30 V

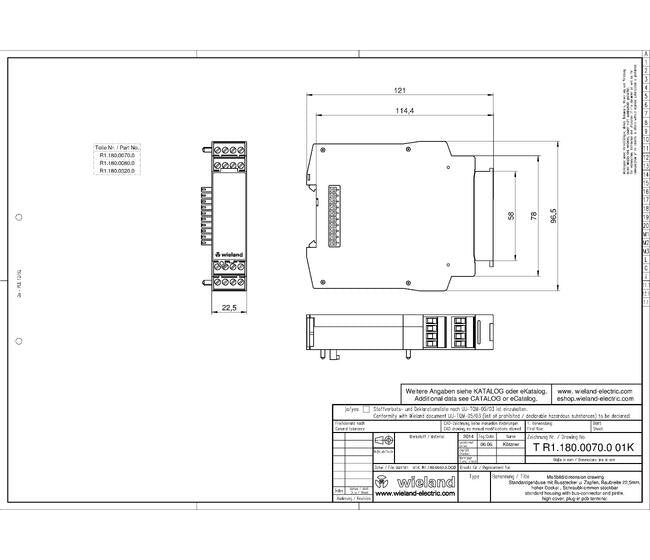

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Inoutputs Configurable
Yes
General Model
SA-IN-S1-K-A DC 24V
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Number Of Outputs
0
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
19.2 V
