Wieland SA-IN-S1-K-C DC 24V Samos Input Module
Wieland SA-IN-S1-K-C DC 24V Samos Input Module
SKU:SAF-d1af53
Wieland SA-IN-S1-K-C DC 24V Input Module for safety devices. SIL Level 3 compliant, easy to install & programming, ideal for safety functions.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Wieland SA-IN-S1-K-C DC 24V Samos Input Module
$169.99
Quantity: 1
Claim Your Seller Account
Wieland SA-IN-S1-K-C DC 24V Samos Input Module
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

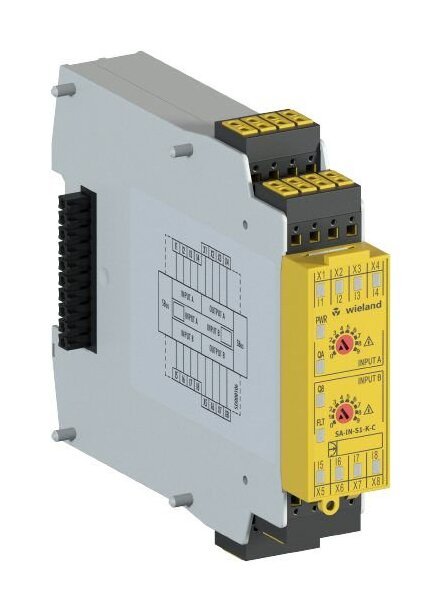

The Wieland SA-IN-S1-K-C DC 24V Samos Input Module is a cutting-edge dial configurable PLC digital input module designed for safety devices. With coding 1 and programming by switch, this module features 2x4 inputs, 2x10 input functions, and push-in-terminals pluggable for easy installation. It meets SIL Level 3 according to IEC 61508, offering 8 input current at state "1" and a permitted voltage of 30V. Ideal for safety functions, this module ensures reliable performance and complies with ISO 13849-1 Category 4, IEC 62061 SILCL 3, and other industry-specific certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Type Of Electric Connection
Spring Clamp Connection
Control Circuit Input Current At State 1
8 mA
Control Circuit Number Of Inputs
8
Control Circuit Permitted Voltage At Input
30 V

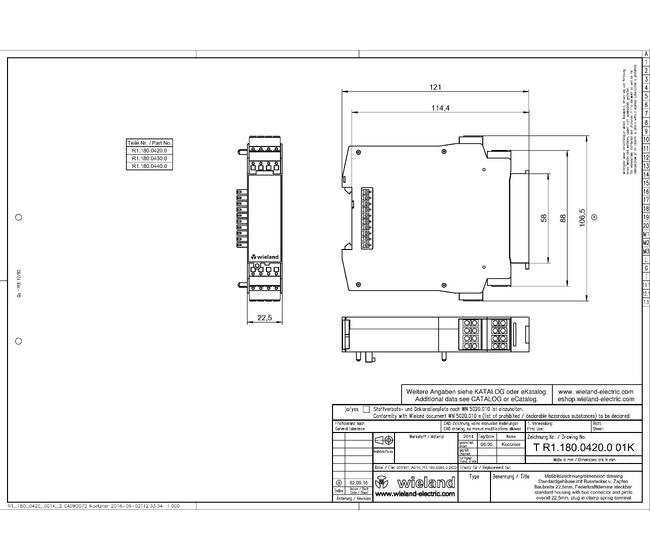

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Inoutputs Configurable
Yes
General Model
SA-IN-S1-K-C DC 24V
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Number Of Outputs
0
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
19.2 V
