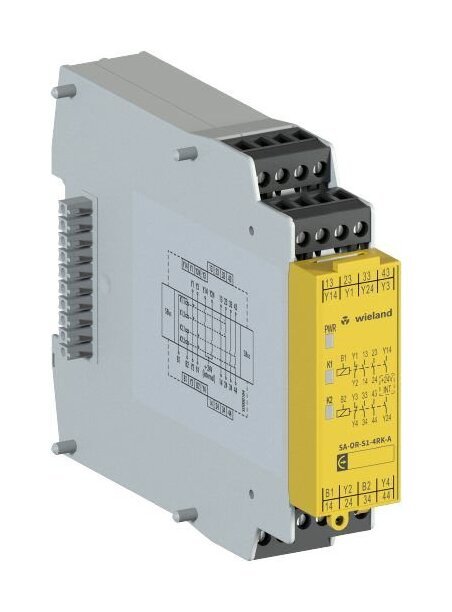

Wieland SA-OR-S1-4RK-A DC 24V PLC Digital Output Modules
Wieland SA-OR-S1-4RK-A DC 24V PLC Digital Output Modules
SKU:SAF-2a881f
Enhance automation with Wieland's efficient, configurable DC 24V Digital Output Modules for industrial safety functions.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Wieland SA-OR-S1-4RK-A DC 24V PLC Digital Output Modules
$149.99
Quantity: 1
Claim Your Seller Account
Wieland SA-OR-S1-4RK-A DC 24V PLC Digital Output Modules
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SA-OR-S1-4RK-A DC 24V PLC Digital Output Modules are designed for efficient and reliable industrial automation tasks. With 6 relay-type outputs supporting 6A current, these modules offer flexibility with configurable in/outputs and are suited for safety functions. Compliance with IEC 61508 SIL 3, ISO 13849-1 Category 4, and RoHS standards ensures top-notch performance and environmental responsibility. Ideal for building automation, machinery safety, and integration into complex control systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Number Of Inputs
0

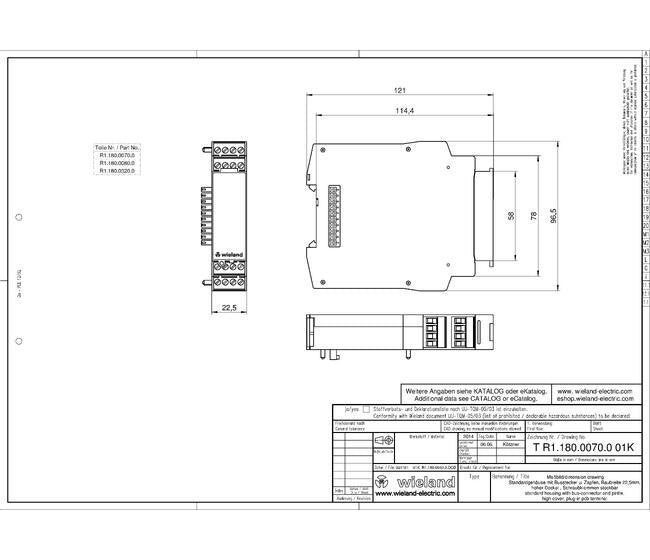

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Inoutputs Configurable
Yes
General Model
SA-OR-S1-4RK-A DC 24V
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Maximum Allowed Output Voltage
230 V
Output Circuit Minimum Allowed Output Voltage
5 V
Output Circuit Number Of Outputs
6
Output Circuit Outputs Short Circuit Protection
No
Output Circuit Output Current
6 A
Output Circuit Type Of Digital Output
Relay
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
19.2 V
