Wieland Safe HTL Encoders
Wieland Safe HTL Encoders
SKU:SAF-b99a47
Certified SIL3 & PLe Safe HTL Encoder with solid shaft design and robust safety features. Meets IEC standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wieland Safe HTL Encoders
$299.99
Quantity: 1
Claim Your Seller Account
Wieland Safe HTL Encoders
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

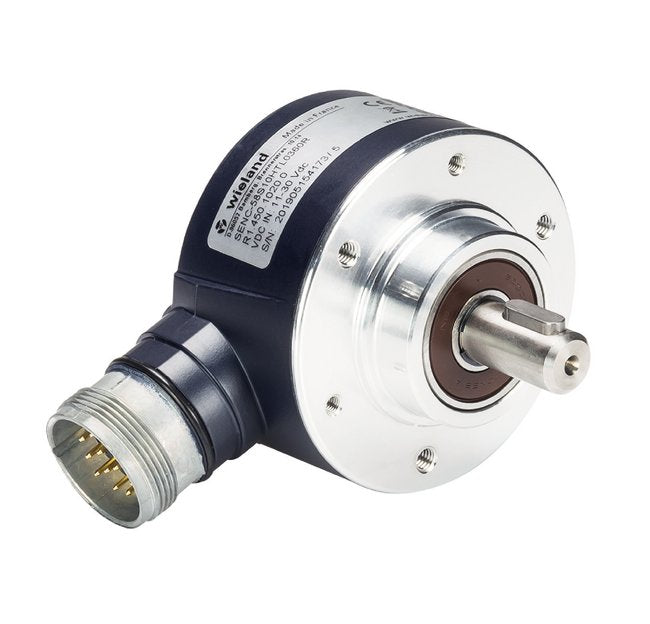

Enhance safety and performance with the Wieland Safe HTL Encoders. This encoder, with SIL3 and PLe certification, features a solid shaft design and meets stringent industry standards including IEC 13849-1, IEC 61508, and more. With a durable die-cast zinc housing and AISI 303 stainless steel shaft, this encoder ensures reliable operation in various environments. The digital HTL signal output and robust safety features make it ideal for critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27270105
Classification Etim 50 Classification
EC001486
Classification Etim 60 Classification
EC001486
Classification Etim 70 Classification
EC001486
Electrical Data Color Coding Encoder Cable
A:gray,A/:pink,B:brown,B/:green,O:red,O/:black,+V:blue and green/brown, 0V:white und white/green
Electrical Data Output Signal
Digital HTL-Signal (11-30V DC)
Electrical Data Pin Coding
A,A/,B,B/ for safety incremental Pulses
Electrical Data Resolution
1024 ppm
Electrical Data Reverse Polarity Protection
Yes
Electrical Data Short Circuit Protective Device
Yes
General Brands
Wieland
General Degree Of Protection Ip
IP65
General Galvanic Isolation
No
General Maximum Ambient Temperature
85 ºC
General Maximum Operating Voltage
30 V
General Maximum Transport Storage Temperature
-20 ºC
General Minimum Ambient Temperature
-25 ºC
General Minimum Operating Voltage
11 V
General Minimum Transport Storage Temperature
85 ºC
General Model
SENC-5810HTL1024R
General Nominal Voltage
24 V
General Rated Current
100 mA
General Standards
IEC 13849-1 | IEC 61508 | IEC 61800-5-2 | IEC 62061
Mechanical Data Bearing Type
Series 6800 - sealed
Mechanical Data Housing Material
Die-cast zinc
Mechanical Data Mechanical Life Time
>29.7 x 109 rotations/ 82365 hours
Mechanical Data Shaft Material
AISI 303 stainless steel
Mechanical Data Weight
300 g
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Direct Current Dc
99 %
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mean Time To Dangerous Failure Mttfd
1515Â a
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pfdd Low Demand Mode
6.6Â E-5
Safety Parameters Pfhd High Demand Mode
7.53Â E-10 1/h
Safety Parameters Pl Iso 13849 1
Level e
Safety Related Data Dc Average Position Monitoring For 40 Degree
99 %
Safety Related Data Dc Average Position Monitoring For 80 Degree
99 %
