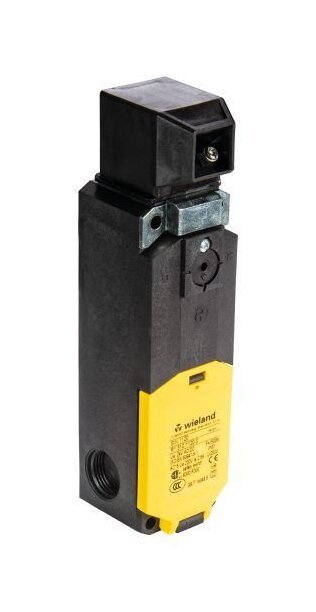

Wieland SAFETY SWITCH SIN 1150 AC/DC 24V
Wieland SAFETY SWITCH SIN 1150 AC/DC 24V
SKU:SAF-01fa97
Reliable Wieland safety switch with 1500 N holding force, separated actuator, and 2 NC / 2 NO contacts. IP67 rated. Compliant with RoHS & REACH-SVHC.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland SAFETY SWITCH SIN 1150 AC/DC 24V
$89.99
Quantity: 1
Claim Your Seller Account
Wieland SAFETY SWITCH SIN 1150 AC/DC 24V
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SAFETY SWITCH SIN 1150 AC/DC 24V is a reliable safety switch with separated actuator and guard locking designed for critical applications. With a spring-actuated mechanism and 1500 N holding force, it ensures secure operation. This switch features 2 NC / 2 NO contacts for versatile connectivity, meeting high standards of safety and performance. Constructed with thermoplastic GV housing material and IP67 protection class, it offers durability and resilience in various environments. Compliant with RoHS and REACH-SVHC regulations, this switch is ideal for both consumer and institutional buyers seeking top-tier safety solutions.
Product Specifications
Classification Eclass 81 Classification
27270611
Classification Etim 40 Classification
EC002593
Classification Etim 50 Classification
EC002593
Classification Etim 60 Classification
EC002593
Classification Etim 70 Classification
EC002593
Electrical Data Contact Elements Direct Opening Action
Yes
Electrical Data Contact Elements Protection Class
II
Electrical Data Contact Elements Rated Impulse Voltage
2.5 kV
Electrical Data Contact Elements Rated Insulation Voltage Ui
250 V
Electrical Data Contact Elements Short Circuit Protective Device
4 Agl
Electrical Data Magnets Duty Cycle
100% ED (at E1; E2)
Electrical Data Magnets Operating Voltage
24 V
Electrical Data Magnets Power Consumption
4.4 V·A
Electrical Data Magnets Switch Operatings Permanent
600 1/h
Electrical Data Magnets Temperature Class F
155 ºC
General Brands
Wieland
General Model
SAFETY SWITCH SIN 1150 AC/DC 24V

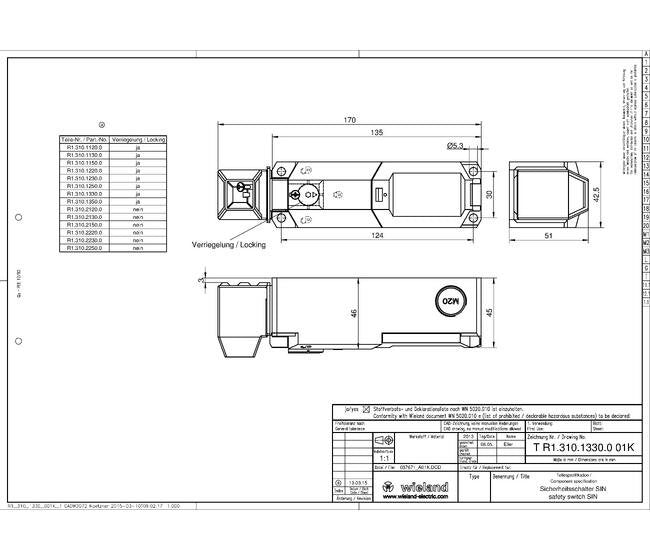

Mechanical Data Actuating Head Material
Thermoplastic GV/ZN-GDâ
Mechanical Data Cable Entry
3 x M20 x 1.5
Mechanical Data Connection Type
Spring Clamp Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Drawing Force
> 27 N
Mechanical Data Fastening
4 x M5
Mechanical Data Hold On Force
< 1500 N
Mechanical Data Installation Position
Operator Definable
Mechanical Data Interlocking Principle
Spring Force
Mechanical Data Maximum Ambient Temperature
70 ºC
Mechanical Data Maximum Flexible Stranded Conductor Cross Sectio
1.5 mm²
Mechanical Data Maximum Switching Principle Contact Elements
4 Slow-Action Contacts
Mechanical Data Mechanical Life Time
106 Switching Cycles
Mechanical Data Minimum Ambient Temperature
-25 ºC
Mechanical Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Mechanical Data Separate Actuator
Yes
Mechanical Data Weight
0.35 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Degree Of Protection Ip
IP67
Technical Data Housing Material
Thermoplastic GV (UL94-V0)
