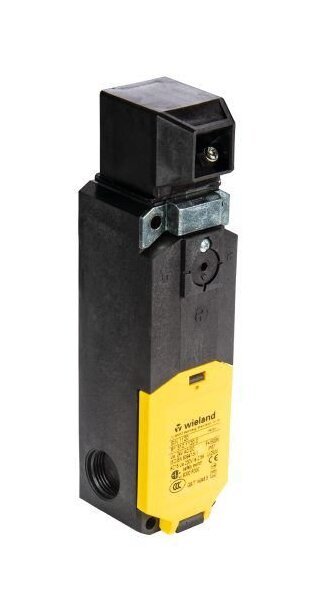

Wieland SAFETY SWITCH SIN 2220 AC 110/230V with Guard Locking
Wieland SAFETY SWITCH SIN 2220 AC 110/230V with Guard Locking
SKU:SAF-ac0c72
Enhanced safety switch with guard locking, magnet-actuated operation, and durable construction for reliable performance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland SAFETY SWITCH SIN 2220 AC 110/230V with Guard Locking
$79.99
Quantity: 1
Claim Your Seller Account
Wieland SAFETY SWITCH SIN 2220 AC 110/230V with Guard Locking
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SAFETY SWITCH SIN 2220 AC 110/230V is a reliable safety solution designed with separated actuator and guard locking for enhanced protection. Featuring magnet-actuated operation and 4 NC contacts with a drawing force of over 27 N, this safety switch ensures secure functionality. With a housing material of Thermoplastic GV (UL94-V0) and an IP67 degree of protection, it offers durability in various environments. Compliant with RoHS and REACH-SVHC regulations, this switch prioritizes safety and sustainability.
Product Specifications
Classification Eclass 81 Classification
27270611
Classification Etim 40 Classification
EC002593
Classification Etim 50 Classification
EC002593
Classification Etim 60 Classification
EC002593
Classification Etim 70 Classification
EC002593
Electrical Data Contact Elements Direct Opening Action
Yes
Electrical Data Contact Elements Protection Class
II
Electrical Data Contact Elements Rated Impulse Voltage
2.5 kV
Electrical Data Contact Elements Rated Insulation Voltage Ui
250 V
Electrical Data Magnets Duty Cycle
100% ED (at E1; E2)
Electrical Data Magnets Operating Voltage
110 V
Electrical Data Magnets Power Consumption
8 V·A
Electrical Data Magnets Switch Operatings Permanent
600 1/h
Electrical Data Magnets Temperature Class F
155 ºC
General Brands
Wieland
General Model
SAFETY SWITCH SIN 2220 AC 110/230V
Mechanical Data Actuating Head Material
Thermoplastic GV/ZN-GDâ
Mechanical Data Cable Entry
3 x M20 x 1.5
Mechanical Data Connection Type
Spring Clamp Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Drawing Force
> 27 N
Mechanical Data Fastening
4 x M5
Mechanical Data Hold On Force
< 1500 N
Mechanical Data Installation Position
Operator Definable
Mechanical Data Maximum Ambient Temperature
70 ºC
Mechanical Data Maximum Flexible Stranded Conductor Cross Sectio
1.5 mm²
Mechanical Data Maximum Switching Principle Contact Elements
4 Slow-Action Contacts
Mechanical Data Minimum Ambient Temperature
-25 ºC
Mechanical Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Mechanical Data Weight
0.35 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Degree Of Protection Ip
IP67
Technical Data Housing Material
Thermoplastic GV (UL94-V0)
