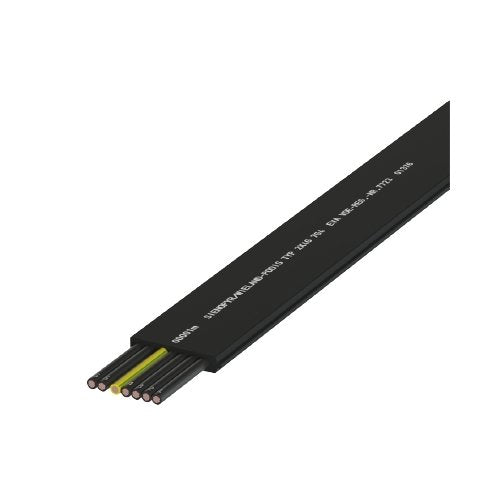

Wieland Schwarz EVA 7G4 Flat Cables
Wieland Schwarz EVA 7G4 Flat Cables
SKU:POD-55ed12
Reliable Wieland Schwarz EVA 7G4 Flat Cables - Flexible, numerically coded, and oil-resistant. Ideal for Podis TC-ER system.
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
Wieland Schwarz EVA 7G4 Flat Cables
$379.99
Quantity: 1
Claim Your Seller Account
Wieland Schwarz EVA 7G4 Flat Cables
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with Wieland's Schwarz Ethylene Vinyl Acetate (EVA) 7G4 Flat Cables. These finely stranded cables are numerically coded, halogen and silicon-free, and resistant to oils and acids. With a robust construction meeting VDE standards, these cables offer low combustion, flexibility, and a reliable black rubber outer sheath. Ideal for Podis TC-ER Cable Systems, these cables ensure safety and efficiency in various applications.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
6 mm
General Approximate Cable Width
35 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
440 kg
General Conductor Category
Class 5 = Flexible
General Core Identification
Numbers
General Core Insulation Material
Polyethylene (PE)
General Flame Retardant According To Din 60332 1 2
Yes
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En50268 2
Yes
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
-5 ºC
General Minimum Surface Temperature Fixed Conductor
-40 ºC
General Number Of Cores
7
General Oil Resistant According To En60811 2 1
Yes
General Outer Sheath Color
Black
General Outer Sheath Material
Rubber (Ethylene Vinyl Acetate (EVA))
General Screen
No
General Static Bending Radius
18 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Technical Data Cold Storage En60068 2 1
96 h, -40ºC
Technical Data Humid Storage En60068 2 78
96 h, 55ºC, 95% Relative Humidity
Technical Data Nominal Conductor Cross Section
4 mm²
Technical Data Nominal Voltage U0
450 V
Technical Data Nominal Voltage Un
750 V
