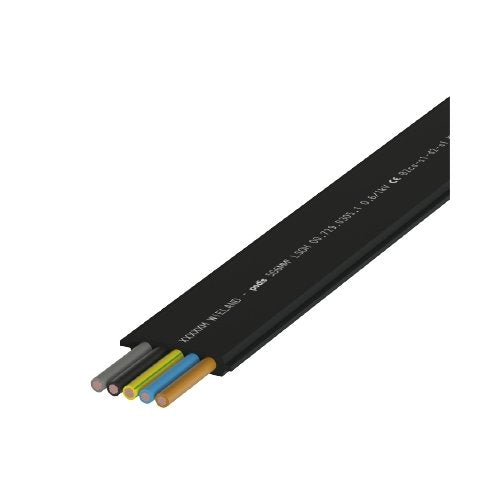

The Wieland Schwarz Li2HH 5G16 Flat Cables are designed for reliability in fixed installations with a nominal voltage of 1kV. With a very flexible conductor category and halogen-free, flame-retardant materials, these cables offer optimum safety and performance. Featuring a core insulation material of Polyolefin and color-coded core identification, they ensure easy installation and maintenance. Compliant with REACH-SVHC and RoHS standards, these cables meet the highest quality and environmental regulations in the industry.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
11.5 mm
General Approximate Cable Width
48 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
1320 kg
General Conductor Category
Class 6 = Very Flexible
General Core Identification
Color
General Core Insulation Material
Polyolefin
General Flame Retardant
Yes
General Halogen Free According To En50267 2 2
Yes
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En61034 2
Yes
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
0 ºC
General Number Of Cores
5
General Outer Sheath Color
Black
General Outer Sheath Material
Polyolefin
General Screen
No
General Shock Resistance
IK10
General Static Bending Radius
69 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Technical Data Nominal Conductor Cross Section
16 mm²
Technical Data Nominal Voltage U0
690 V
Technical Data Nominal Voltage Un
1 kV
