Wieland Schwarz XLPE 7G4 Flat Cables

Wieland Schwarz XLPE 7G4 Flat Cables

SKU:POD-4512b4

Enhance your cabling system with Wieland's high-quality flat cables for safe and flexible applications.

Regular price $56.99
Regular price Sale price $56.99
Sale

Initiate Order

Wieland Schwarz XLPE 7G4 Flat Cables

Wieland Schwarz XLPE 7G4 Flat Cables

$56.99

Quantity: 1

Claim Your Seller Account

Wieland Schwarz XLPE 7G4 Flat Cables

Wieland Schwarz XLPE 7G4 Flat Cables

$56.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

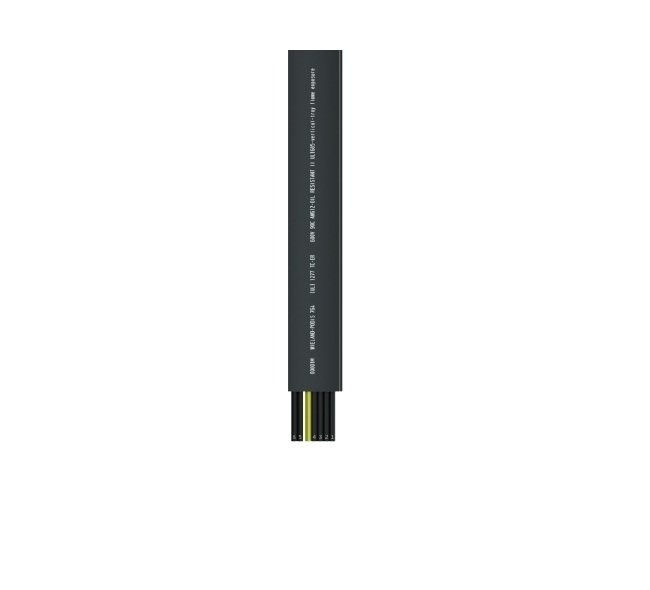

Upgrade your cabling system with Wieland's Schwarz XLPE 7G4 Flat Cables. These tray cables feature a 7 x 4 mm² XLPE construction with fine stranding and numerical coding for easy identification. With a low smoke-zero halogen design, these copolymer, cross-linked cables are ideal for applications requiring flexibility, oil resistance, and a temperature range of -30°C to 90°C. Compliant with cUR UL-listed, REACH-SVHC, and RoHS standards, these cables ensure safe and environmentally friendly usage.

Product Specifications

Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
6 mm
General Approximate Cable Width
35 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
440 kg
General Conductor Category
Class 6 = Very Flexible
General Core Identification
Numbers
General Core Insulation Material
Copolymer | Thermoplastic
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En50268 2
No
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
-30 ºC
General Number Of Cores
7
General Oil Resistant According To En60811 2 1
Yes
General Outer Sheath Color
Black
General Outer Sheath Material
Copolymer, Cross-Linked
General Screen
No
General Static Bending Radius
100 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
cUR UL-Listed | REACH-SVHC Compliant | RoHS Compliant
Technical Data Nominal Conductor Cross Section
4 mm²
Technical Data Nominal Voltage U0
600 V
Technical Data Nominal Voltage Un
600 V
