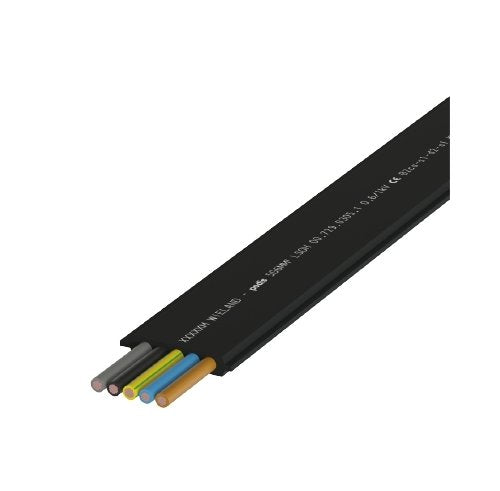

Wieland Schwarz XPE 5G6 Flat Cables

Wieland Schwarz XPE 5G6 Flat Cables

SKU:POD-3b8f70

Premium Wieland flat cables: Halogen-free, flame-retardant, and RoHS compliant. Ideal for high-performance setups.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Wieland Schwarz XPE 5G6 Flat Cables

Wieland Schwarz XPE 5G6 Flat Cables

$34.99

Quantity: 1

Claim Your Seller Account

Wieland Schwarz XPE 5G6 Flat Cables

Wieland Schwarz XPE 5G6 Flat Cables

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Wieland Schwarz XPE 5G6 Flat Cables are designed for superior performance in demanding applications. With a core insulation material of copolymer and thermoplastic, these cables are halogen-free and flame retardant, ensuring safety in installations. The 6 mm² nominal conductor cross-section and 1000V nominal voltage make them reliable for various setups. These cables meet RoHS and REACH-SVHC standards, and are UL Listed, guaranteeing quality and compliance.

Product Specifications

Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
7.5 mm
General Approximate Cable Width
43 mm
General Brands
Wieland
General Cable Weight Per Kilometer Km
700 kg
General Conductor Category
Class 6 = Very Flexible
General Core Identification
Color
General Core Insulation Material
Copolymer | Thermoplastic
General Flame Retardant According To Din 60332 1 2
Yes
General Halogen Free According To En50267 2 3
Yes
General Low Smoke According To En50268 2
No
General Maximum Installation Temperature
50 ºC
General Maximum Surface Temperature Fixed Conductor
90 ºC
General Minimum Installation Temperature
5 ºC
General Minimum Surface Temperature Fixed Conductor
-25 ºC
General Number Of Cores
5
General Oil Resistant According To En60811 2 1
Yes
General Outer Sheath Color
Black
General Screen
No
General Static Bending Radius
38 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Specifications Certificationapproval
Underwriters Laboratories (UL) Listed
Technical Data Nominal Conductor Cross Section
6 mm²
Technical Data Nominal Voltage U0
690 V
Technical Data Nominal Voltage Un
1000 V
