Wieland SET STS 0113 Actuating Switch
Wieland SET STS 0113 Actuating Switch
SKU:SAF-158207
Reliable Wieland actuating switch with 8mm switching distance, IP67 protection, and automatic start for safety functions.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland SET STS 0113 Actuating Switch
$89.99
Quantity: 1
Claim Your Seller Account
Wieland SET STS 0113 Actuating Switch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

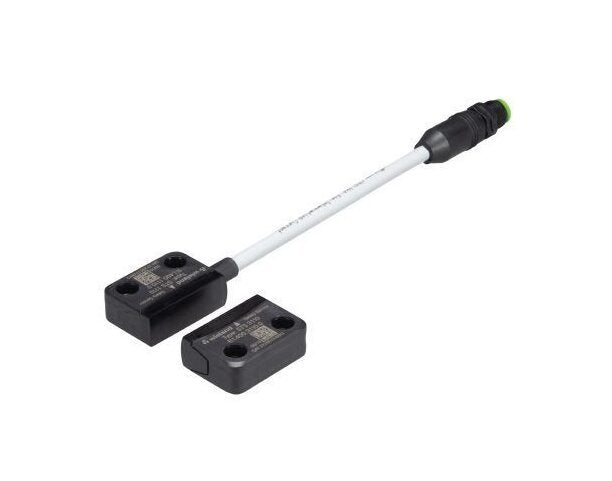

The Wieland SET STS 0113 Actuating Switch is a reliable safety device perfect for various applications. This transponder switch and actuator feature an Automatic Start function and a switching distance of 8mm, ensuring precise operation. With a durable plastic housing, IP67 protection rating, and a cable length of 3m, this switch guarantees longevity and easy installation. It meets stringent safety parameters like ISO 13849-1 Category 4, providing a high level of safety assurance for users.
Product Specifications
Classification Eclass 81 Classification
27270105
Classification Etim 40 Classification
EC002544
Classification Etim 50 Classification
EC002544
Classification Etim 60 Classification
EC002544
Classification Etim 70 Classification
EC002544
Dimensions Height Of Sensor
26 mm
Dimensions Length Of Sensor
13 mm
Dimensions Sensor Width
36 mm
General Brands
Wieland
General Model
SET STS 0113
Mechanical Data Cable Length
3 m
Mechanical Data Crossshort Circuit Identification Possible
Yes
Mechanical Data Degree Of Protection Ip
IP67
Mechanical Data Housing Material
Plastic
Mechanical Data Number Of Protected Contact Energized Outputs
2
Mechanical Data Protected Switch Distance Off
18 mm
Mechanical Data Protected Switch Distance On
8 mm
Mechanical Data Suited For Safety Functions
Yes
Mechanical Data Switching Distance
8 mm
Mechanical Data Type Of Actuation
Transponder
Mechanical Data Type Of Electric Connection
Cable
Other Number Of Protected Semiconductor Outputs
2
Output Circuit Maximum Output Current At Protected Output
400 mA
Product Compliance Reach Svhc Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pfhd High Demand Mode
2.24Â E-9 1/h
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
