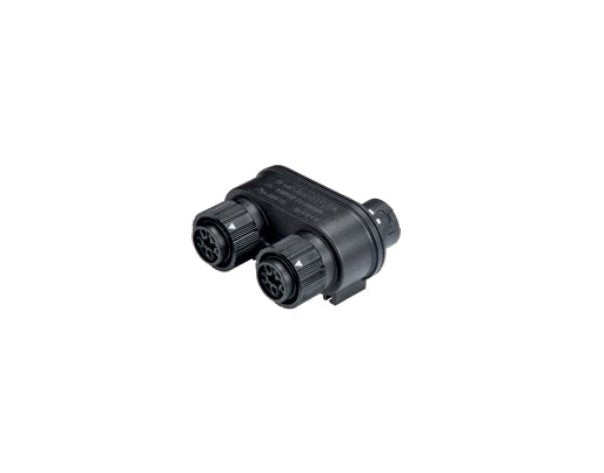

Wieland Signal Brown Coding Distributor Block - 4 & 5 Poles
Wieland Signal Brown Coding Distributor Block - 4 & 5 Poles
SKU:CIR-b67960
Wieland 4/5 Pole Signal Brown Distributor Block. Reliable, secure, and compliant for outdoor electrical connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland Signal Brown Coding Distributor Block - 4 & 5 Poles
$39.99
Quantity: 1
Claim Your Seller Account
Wieland Signal Brown Coding Distributor Block - 4 & 5 Poles
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 4 and 5 pole distributor block in signal brown color coding is a reliable solution designed for parallel connections in electrical setups. With a robust construction and the ability to accommodate cable diameters ranging from 7.1 to 13mm, this distributor block ensures secure connections rated up to 600V. It supports wire sizes compliant with international standards, offering a rated current of 16A while meeting IP69 and Type 4X/6P protection levels. Ideal for outdoor applications, this distributor block guarantees efficient power distribution while allowing fastening options to mounting plates.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
Model Number Of Inputs
1
Model Number Of Outputs
2
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
7.1 to 13 mm
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Number Of Poles
4 | 5
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
