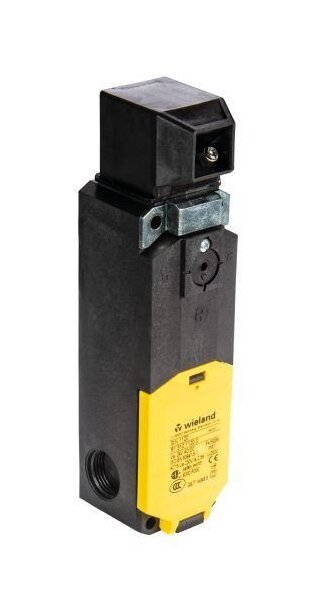

Wieland SIN 1130 AC/DC 24V Safety Switch with Guard Locking
Wieland SIN 1130 AC/DC 24V Safety Switch with Guard Locking
SKU:SAF-dc8a0e
Premium Wieland SIN 1130 Safety Switch for reliable emergency stop applications with separated actuator and guard locking.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland SIN 1130 AC/DC 24V Safety Switch with Guard Locking
$89.99
Quantity: 1
Claim Your Seller Account
Wieland SIN 1130 AC/DC 24V Safety Switch with Guard Locking
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SAFETY SWITCH SIN 1130 AC/DC 24V is a premium safety switch featuring a separated actuator and guard locking system. With a drawing force of over 27 N and a hold on force of less than 1500 N, this switch ensures reliable operation. It offers 3 normally closed and 1 normally open contacts, making it ideal for emergency stop applications. Constructed with high-quality thermoplastic materials, it has an IP67 protection rating, suitable for a wide range of environments. With compliance to RoHS and REACH-SVHC standards, this safety switch is both safe and environmentally friendly.
Product Specifications
Classification Eclass 81 Classification
27270611
Classification Etim 40 Classification
EC002593
Classification Etim 50 Classification
EC002593
Classification Etim 60 Classification
EC002593
Classification Etim 70 Classification
EC002593
Electrical Data Contact Elements Direct Opening Action
Yes
Electrical Data Contact Elements Protection Class
II
Electrical Data Contact Elements Rated Impulse Voltage
2.5 kV
Electrical Data Contact Elements Rated Insulation Voltage Ui
250 V
Electrical Data Contact Elements Short Circuit Protective Device
4 Agl
Electrical Data Magnets Duty Cycle
100% ED (at E1; E2)
Electrical Data Magnets Operating Voltage
24 V
Electrical Data Magnets Power Consumption
4.4 V·A
Electrical Data Magnets Switch Operatings Permanent
600 1/h
Electrical Data Magnets Temperature Class F
155 ºC
General Brands
Wieland
General Model
SAFETY SWITCH SIN 1130 AC/DC 24V
Mechanical Data Actuating Head Material
Thermoplastic GV/ZN-GDâ
Mechanical Data Cable Entry
3 x M20 x 1.5
Mechanical Data Connection Type
Spring Clamp Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Drawing Force
> 27 N
Mechanical Data Fastening
4 x M5
Mechanical Data Hold On Force
< 1500 N
Mechanical Data Installation Position
Operator Definable
Mechanical Data Interlocking Principle
Spring Force
Mechanical Data Maximum Ambient Temperature
70 ºC
Mechanical Data Maximum Flexible Stranded Conductor Cross Sectio
1.5 mm²
Mechanical Data Maximum Switching Principle Contact Elements
4 Slow-Action Contacts
Mechanical Data Mechanical Life Time
106 Switching Cycles
Mechanical Data Minimum Ambient Temperature
-25 ºC
Mechanical Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Mechanical Data Separate Actuator
Yes
Mechanical Data Weight
0.35 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Degree Of Protection Ip
IP67
Technical Data Housing Material
Thermoplastic GV (UL94-V0)
