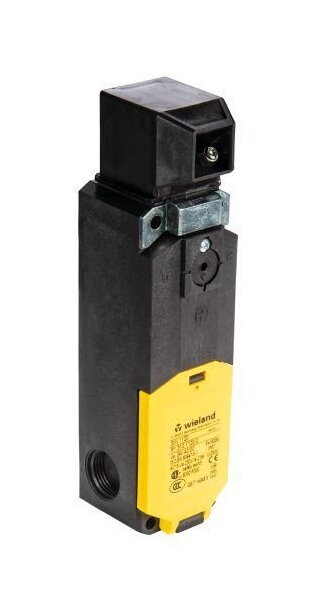

Wieland SIN 2150 AC/DC 24V Safety Switch with Guard Locking
Wieland SIN 2150 AC/DC 24V Safety Switch with Guard Locking
SKU:SAF-9ec8cc
Enhance workplace safety with Wieland SIN 2150 Safety Switch - magnet-actuated, 1500 N holding force, and IP67 protection. Ideal for emergency stop applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland SIN 2150 AC/DC 24V Safety Switch with Guard Locking
$89.99
Quantity: 1
Claim Your Seller Account
Wieland SIN 2150 AC/DC 24V Safety Switch with Guard Locking
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SAFETY SWITCH SIN 2150 AC/DC 24V is a cutting-edge safety switch designed for maximum protection. Featuring magnet-actuated separated actuator and guard locking, this switch ensures a secure environment with its 1500 N holding force and 2 NC / 2 NO contacts. With a robust thermoplastic housing and cover material, it offers IP67 protection against environmental elements. Its electrical data includes a rated insulation voltage of 250V and a direct opening action for added safety. Perfect for emergency stop applications, this switch combines reliability with optimal performance.
Product Specifications
Classification Eclass 81 Classification
27270611
Classification Etim 40 Classification
EC002593
Classification Etim 50 Classification
EC002593
Classification Etim 60 Classification
EC002593
Classification Etim 70 Classification
EC002593
Electrical Data Contact Elements Direct Opening Action
Yes
Electrical Data Contact Elements Protection Class
II
Electrical Data Contact Elements Rated Impulse Voltage
2.5 kV
Electrical Data Contact Elements Rated Insulation Voltage Ui
250 V
Electrical Data Magnets Duty Cycle
100% ED (at E1; E2)
Electrical Data Magnets Operating Voltage
24 V
Electrical Data Magnets Power Consumption
4.4 V·A
Electrical Data Magnets Switch Operatings Permanent
600 1/h
Electrical Data Magnets Temperature Class F
155 ºC
General Brands
Wieland
General Model
SAFETY SWITCH SIN 2150 AC/DC 24V
Mechanical Data Actuating Head Material
Thermoplastic GV/ZN-GDâ
Mechanical Data Cable Entry
3 x M20 x 1.5
Mechanical Data Connection Type
Spring Clamp Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Drawing Force
> 27 N
Mechanical Data Fastening
4 x M5
Mechanical Data Hold On Force
< 1500 N
Mechanical Data Installation Position
Operator Definable
Mechanical Data Maximum Ambient Temperature
70 ºC
Mechanical Data Maximum Flexible Stranded Conductor Cross Sectio
1.5 mm²
Mechanical Data Maximum Switching Principle Contact Elements
4 Slow-Action Contacts
Mechanical Data Minimum Ambient Temperature
-25 ºC
Mechanical Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Mechanical Data Weight
0.35 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Degree Of Protection Ip
IP67
Technical Data Housing Material
Thermoplastic GV (UL94-V0)
