The Wieland Single Channel Control Relay SNO4003K-A offers advanced safety features suitable for industrial applications. This base unit supports automatic/manual reset with switch monitoring, 3 enabling current paths, and 1 signaling output, all powered by AC/DC 24V. With standards compliance including EN 62061 and EN ISO 13849-1, this relay ensures secure operations within temperatures ranging from -25°C to 55°C. Suitable for monitoring emergency-stop circuits and position switches, this relay provides reliable performance with Ag-alloy, gold-plated contact material.
Product Specifications
Application Suitable For Monitoring Of Emergency Stop Circuits
Yes
Application Suitable For Monitoring Of Magnetic Switches
No
Application Suitable For Monitoring Of Optoelectronic Protection
No
Application Suitable For Monitoring Of Position Switches
Yes
Application Suitable For Monitoring Of Proximity Switches
Yes
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Evaluation Inputs
1-channel
Control Circuit Input Current Safety Circuitreset Circuit
90 mA
Control Circuit Maximum Peak Current Safety Circuitreset Circuit
1500 mA
Control Circuit Maximum Resistivity Per Channel
⤠(5 + (1.333 x UB / UN - 1) x 200) Ω
Control Circuit Minimum Switch On Time
60 ms
Control Circuit Nominal Direct Current Dc Output Voltage
24 V
Control Circuit Recovery Time Tw
>Â 200 ms
Control Circuit Release Time Tr
<Â 80 ms

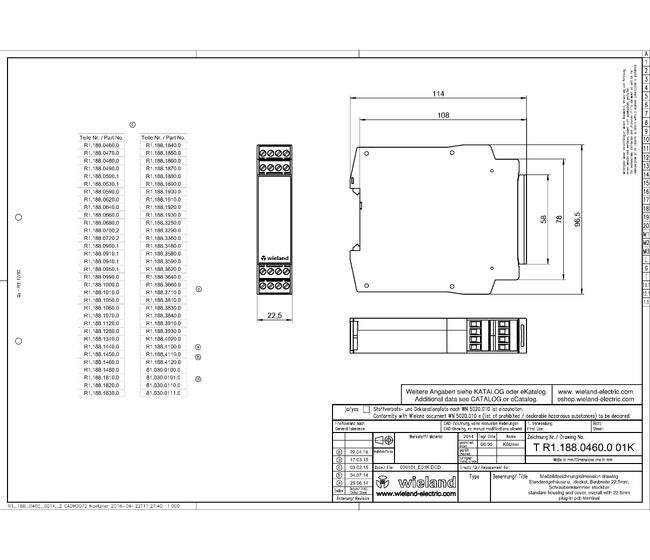

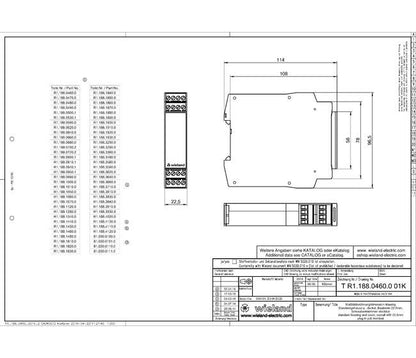

Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Alternating Current Ac Signaling Paths Rated Swit
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Output Circuit Direct Current Dc Signaling Paths Rated Switching
24 V
Supply Circuit Maximum Operating Voltage
26.4 V
Supply Circuit Maximum Rated Alternating Current Ac Voltage For
26.4 V
Supply Circuit Maximum Rated Direct Current Dc Voltage For Contr
26.4 V
Supply Circuit Minimum Operating Voltage
20.4 V
Supply Circuit Minimum Rated Control Supply Voltage At 50 Hertz
20.4 V
Supply Circuit Minimum Rated Direct Current Dc Voltage For Contr
20.4 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
20.4 V
Supply Circuit Nominal Voltage Un
AC/DC 24 V
Supply Circuit Rated Control Supply Voltage At 50 Hertz Hz Alter
26.4 V
Supply Circuit Rated Control Supply Voltage At 60 Hertz Hz Alter
20.4 V
