The Wieland SMA 0229 Safety Magnet Switch is a top-tier safety device designed for security-critical applications. With its manipulation-safe design and IP67 protection rating, this rectangular switch ensures reliable performance in challenging environments. Featuring normally open/normally closed contacts and a connector M8 for easy installation, this switch offers a switching distance of 3mm and unique cross/short circuit identification capabilities. Compliant with ISO 13849-1 Category 4 and SILCL 3 standards, this switch guarantees high-level safety functionality and durability.
Product Specifications
Classification Eclass 81 Classification
27270105
Classification Etim 40 Classification
EC002544
Classification Etim 50 Classification
EC002544
Classification Etim 60 Classification
EC002544
Classification Etim 70 Classification
EC002544

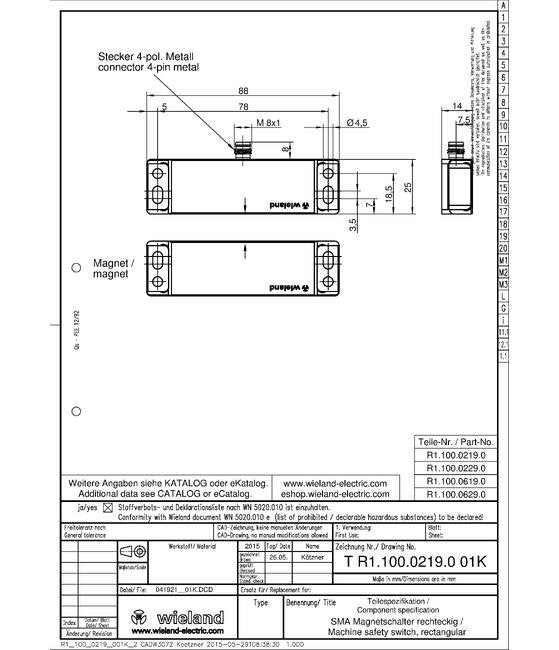

Dimensions Height Of Sensor
14 mm
Dimensions Length Of Sensor
88 mm
Dimensions Sensor Width
25 mm
General Construction Type Housing
Cuboid
General Crossshort Circuit Identification Possible
Yes
General Degree Of Protection Ip
IP67
General Housing Material
Plastic
General Number Of Protected Contact Energized Outputs
2
General Protected Switch Distance Off
18 mm
General Protected Switch Distance On
7 mm
General Suited For Safety Functions
Yes
General Switching Distance
3 mm
General Type Of Actuation
Magnet
General Type Of Electric Connection
Connector M8
Other Number Of Protected Semiconductor Outputs
0
Other Type Of Switch Output
Other
Other Voltage Type
Direct Current (DC)
Output Circuit Maximum Output Current
200 mA
Output Circuit Maximum Rated Supply Voltage At Direct Current Dc
48 V
Output Circuit Minimum Output Current
5 mA
Output Circuit Minimum Rated Supply Voltage At Direct Current Dc
5 V
Product Compliance Reach Svhc Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
